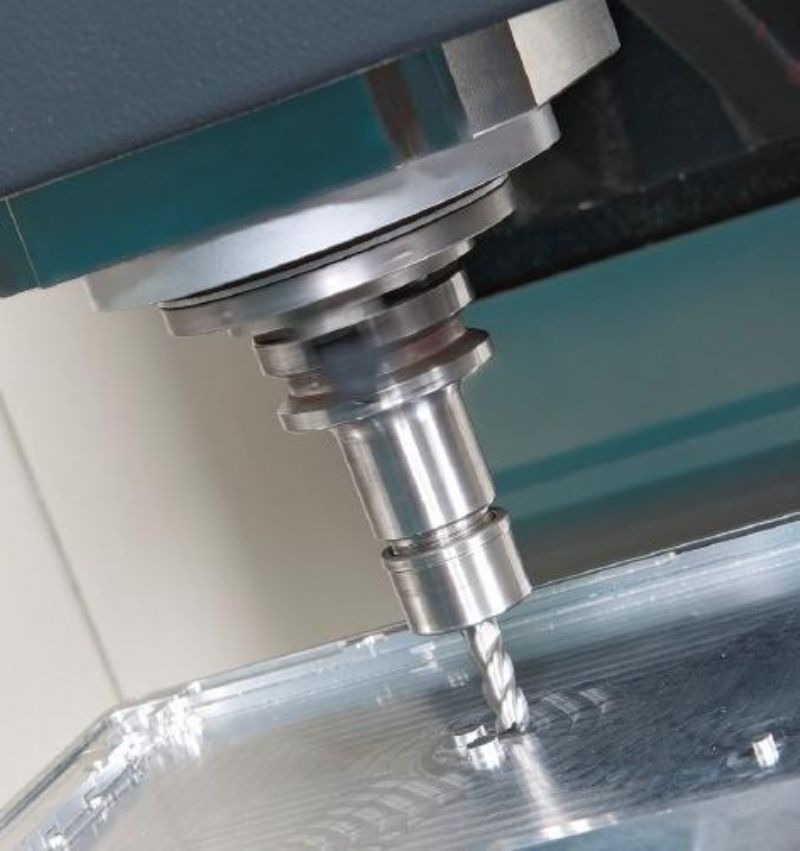

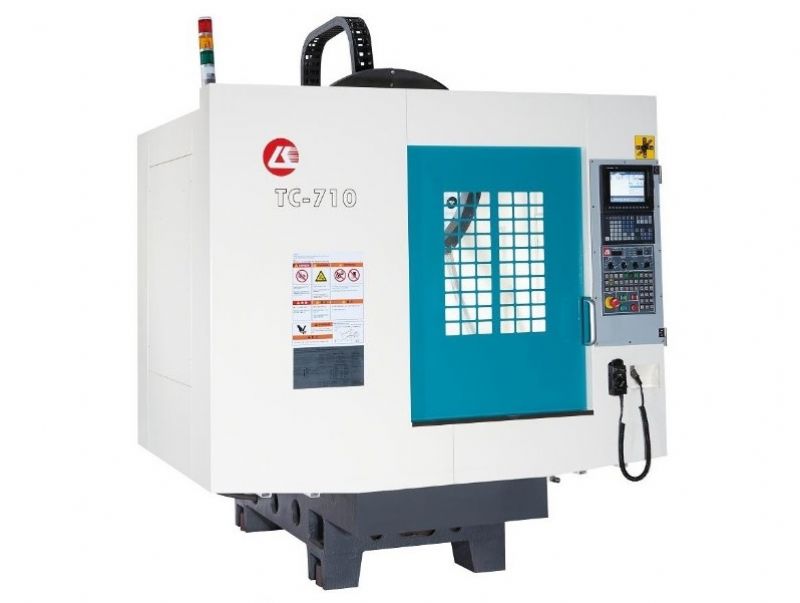

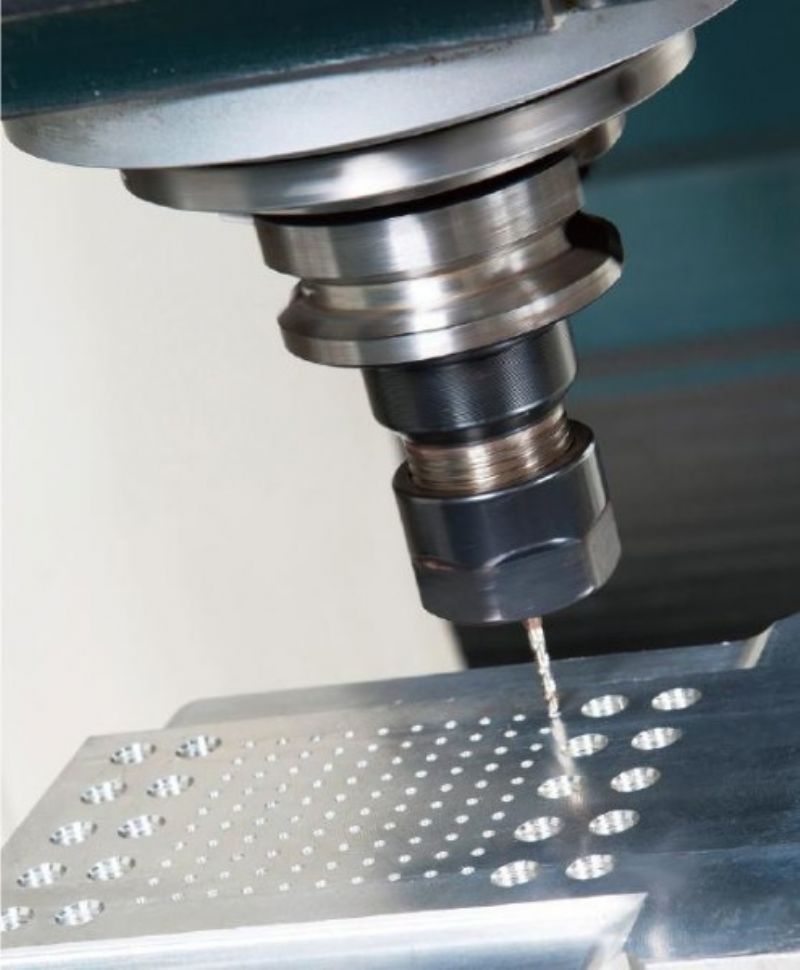

CNC Fast Drilling and Tapping Machine
CNC Fast Drilling and Tapping Machine / Table: 850x420 mm / Movements: 710x420x350 mm / Mitsubishi M80 2A / 12.000 rpm / min.
Kategorie
Metallbearbeitungsmaschinen und -geräte
Unterkategorie
CNC Bearbeitungstechnologien
Technische Daten

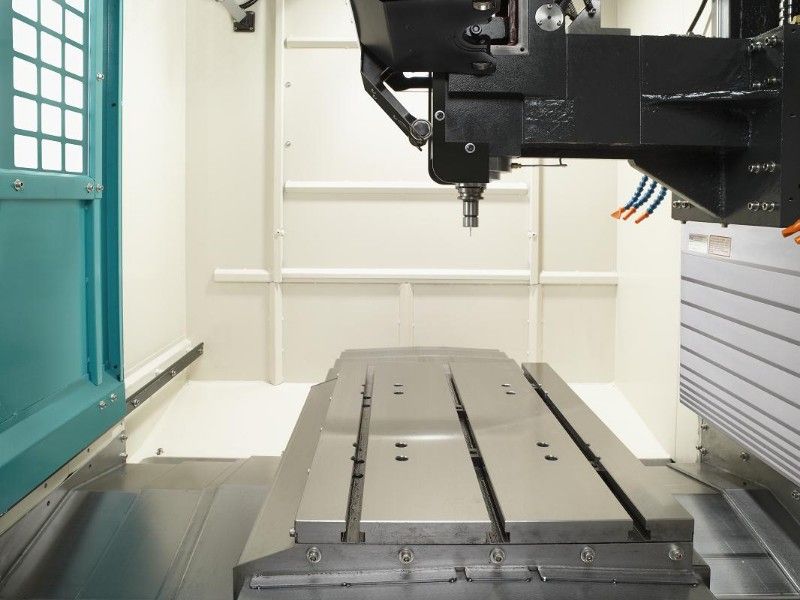

| T Slot Size and Number | 14x100x3 |
|---|---|
| Table Loading Capacity | 250kg |
| Distance Between Table ~ Spindle Tip | 180~530mm |
| Y Axis Movement | 420mm |
| Z Axis Movement | 350mm |
| X Axis Idle Feed Speed | 48,000 mm/min |
| Y Axis Idle Feed Speed | 48,000 mm/min |
| Z Axis Idle Feed Speed | 48,000 mm/min |
| X, Y, Z Axis Cutting Speed | 20,000mm/min |
| X, Y, Z Axis Positioning Accuracy | 0.017/300mm |
| X, Y, Z Axis Repeat Sensitivity | ±0.005mm |
| Spindle Era | 12,000 rpm |
| Spindle Transfer | Direct |
| Spindle Bearing Type | Steel |
| Spindle Motor Type | AC Servo |
| X Axis Motor Power | 1.5kw |
| Y Axis Motor Power | 1.5kw |
| Z Axis Motor Power | 2.2kw |
| Cooling System Engine Power | 0.75 kw x 2 Pieces |
| Team Capacity | 16 Pieces |
| Max. Tool Weight | 3kg |
| Max. Tool Length | 200mm |
| Max. Tool Diameter | Ø 100 / Ø 140 mm |
| Tool Change Time (Tool to Tool) | 2.3 sec |
| Total Power Requirement | 380 V/ 50 Hz. 12kw |
| Countertop Dimensions | 3,050 x 4,100 x 2,400 mm |
| Area Covered by the Countertop | - |
| Bench Weight | 2,950 kg |
