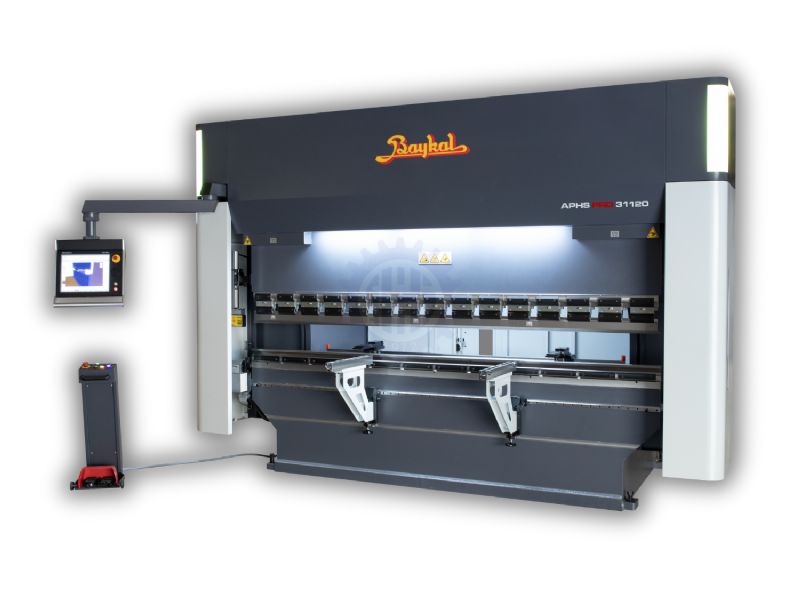

CNC Hydraulikpresse Bremse
Kategorie
Metallbearbeitungsmaschinen und -geräte
Unterkategorie
Blechbearbeitungsmaschinen
Technische Daten
| Allgemeine Merkmale | Neue Art Körperdesign. Energiesparendes europäisches Hydrauliksystem. Delem 66T CNC-Steuerung. 2 Achsen Rückwand. (X-R) Motorisierte CNC-Kronierung. Schmales Tischsystem. Sicherheitssystem Akas II. Motorisierte Heckklappe. Zwei Bürste Typ Unterarme. |
|---|---|

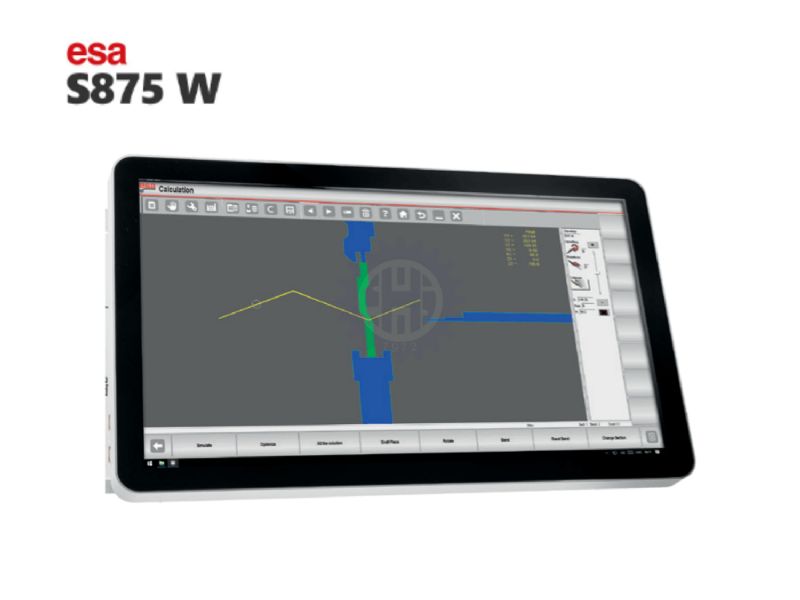

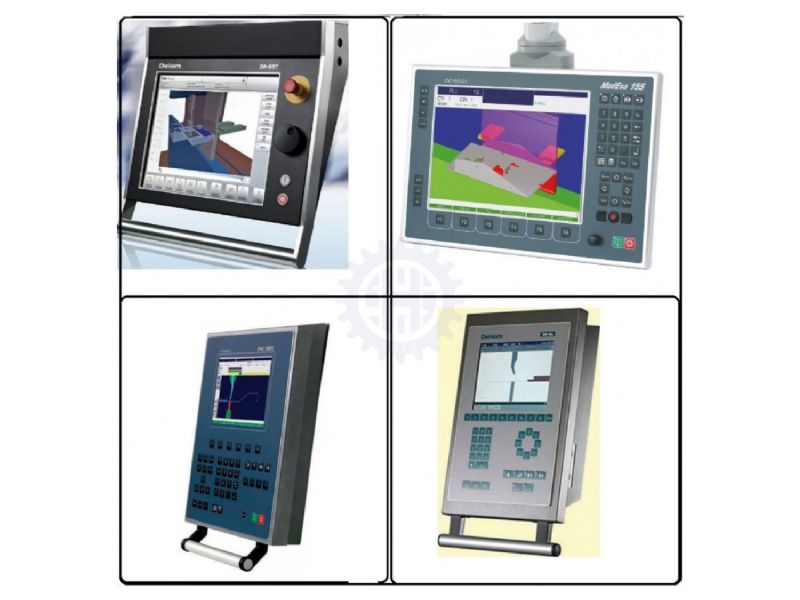

| CNC-Steuerung Funktionen | Graphical control unit that provides complete programming and machine control features in an easy-to-use computer environment. Programmable multi-axis control. Y1-Y2 cylinder axes. X1-X2-R1-R2-Z1-Z2 backgauge axes. CNC lower table crowning axis. Modular expansion possibility for additional axes. High memory capacity for pattern information and program steps. Possibility of high number of product and twist repetitions. Direct graphical programming that enables automatic calculation of all axis positions and bending sequences in a graphical simulation environment. Product programming by entering direct bending angle or absolute value. Programmable or automatically calculated functions for each CNC program and bending sequence: bending length/thickness, material selection, mold selection, bending method, mute position, pinching point, pressing force/speed, backgauge incre mental movement and retraction, stop time, waiting time for axes repositioning, decompression distance/speed, taper bend adjustment, Y and X axis corrections. Possibility of manual use of all axes. Possibility to reprogram all axes during operation. (teach-in) Language option. Integrated diagnostic program. Uploading information to flash disk via USB port. |
| Z-Achse | ± 0,05 mm (D) Backgauge Achszusätze für spezielle Anwendungen: Bewegung auf Kugellagern |

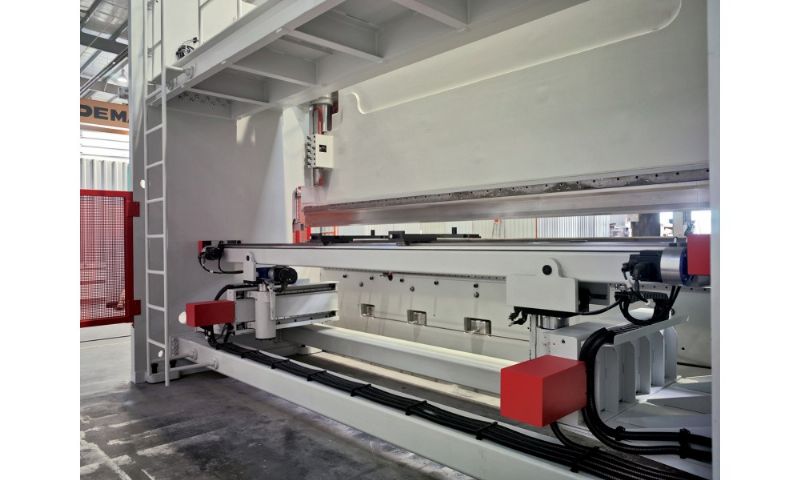

| Backgauge Optionen | (A) X-Achsen-Rückwandsystem: X1 - X2 |
| x-achse | 1000mm |
| R-Achse | 160mm |
| Z-Achse | Variable |
| x-achse | 350 mm/s |
| R-Achse | 240mm/s |
| Z-Achse | 1000 mm/s |
| x-achse | ± 0,03 mm |
| R-Achse | ± 0,05 mm |
| x-achse | 1000 mm |
| R-Achse | 160 mm |
| x-achse | 350 mm/s |
| R-Achse | 240mm/s |
| x-achse | ± 0,03 mm |

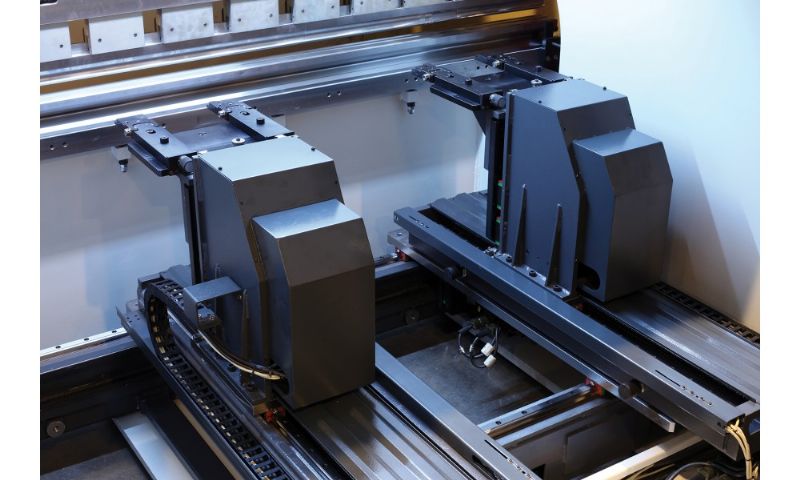

| R-Achse | ± 0.05 mm (C) X-R-Z1-Z2 -axis back gauge system: Movement on ball bearings |
| stoppabstand | 1000mm |
| Bewegungsgeschwindigkeit (maximal) | 330mm/s |

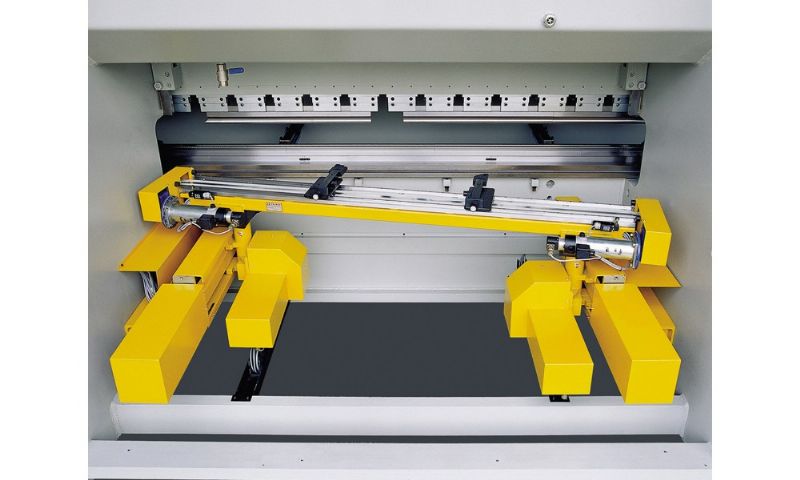

| Positionsgenauigkeit | ± 0.03 mm (B) X and R-axis backgauge system: |

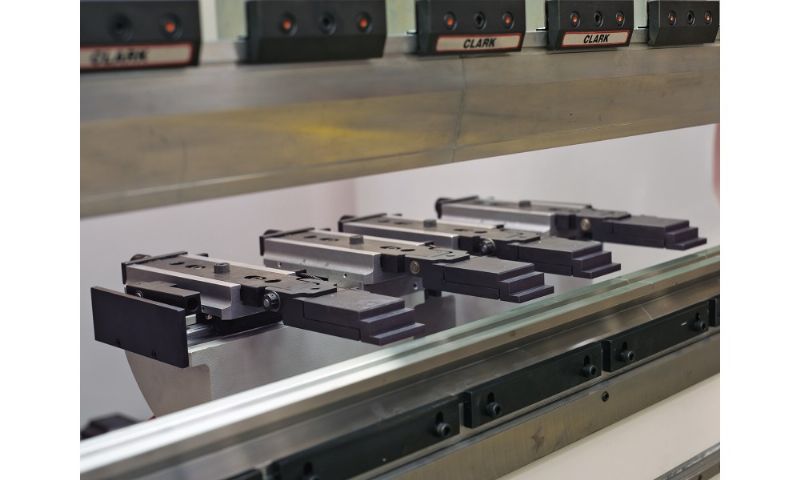

| Zubehör | Standard European-style upper mold holders with universal adapter. Segmented, universal upper mold and multi-channel lower mold. Foot-pedal control console. Front support arms moving on the rail car. Electric-switched, side and rear guards. Optional Manual or motorized (CNC) crowning table. Mechanical easy assembly/removal system for the upper mould. Hydraulic mold clamping systems. Special molds for customer applications: Upper and lower molds with special profiles. Single-channel lower molds with adapter tray. For additional safety, front light barrier or laser guard. Energy saving. |
