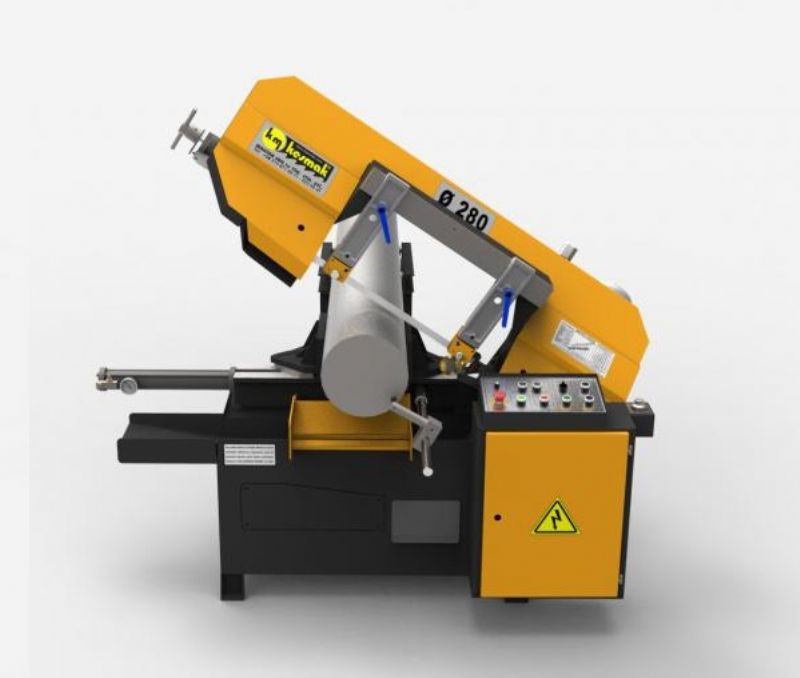

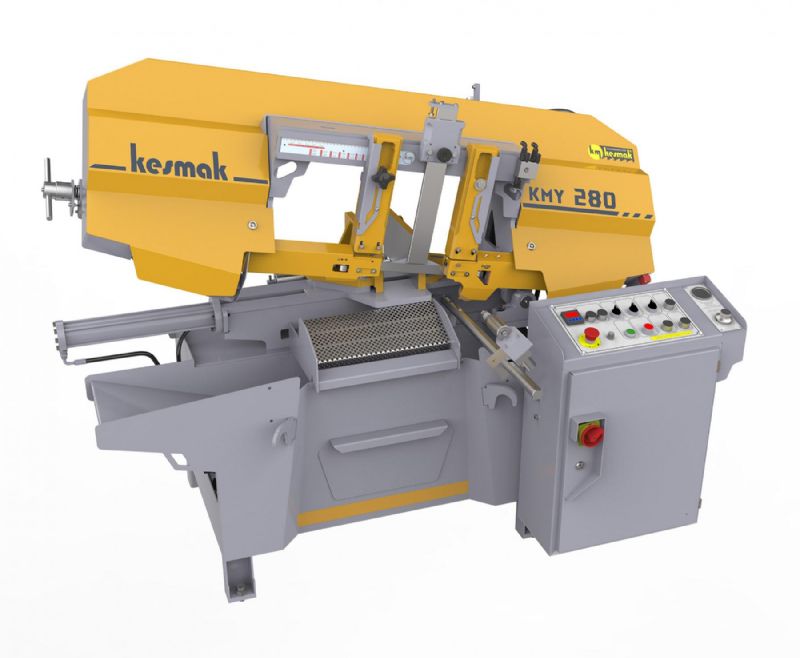

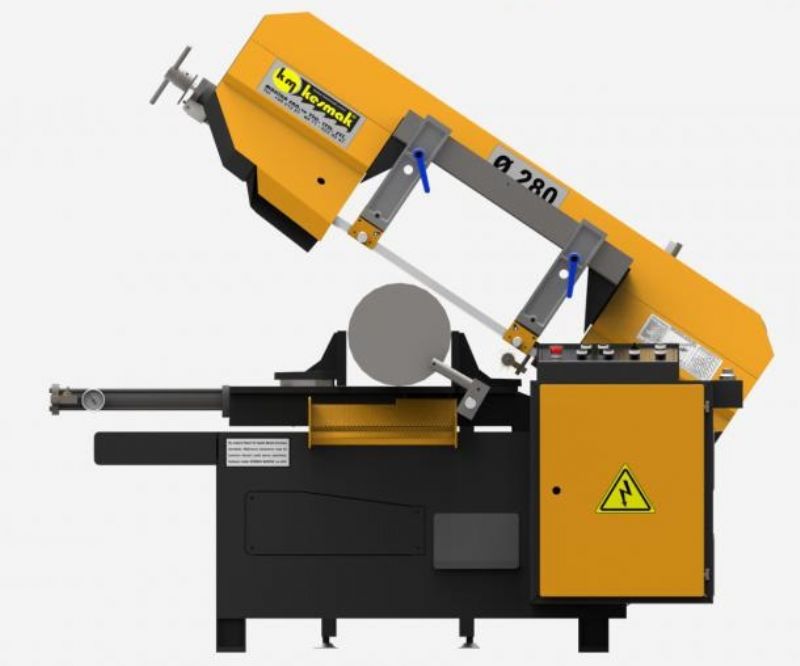

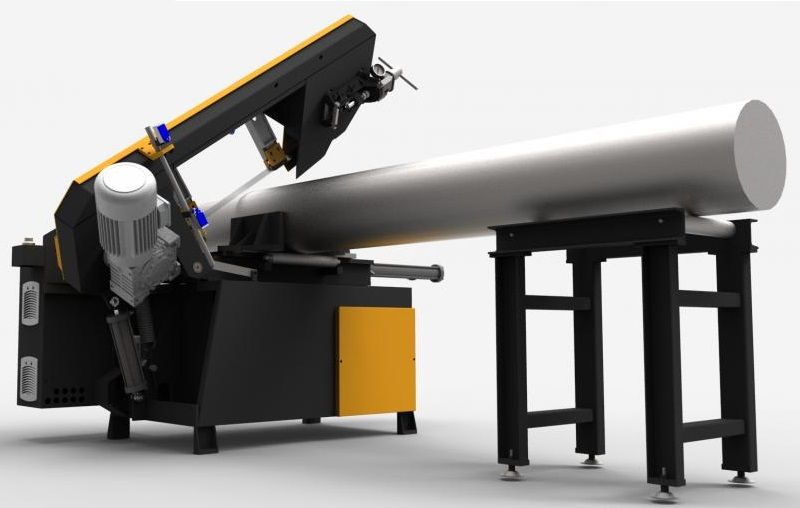

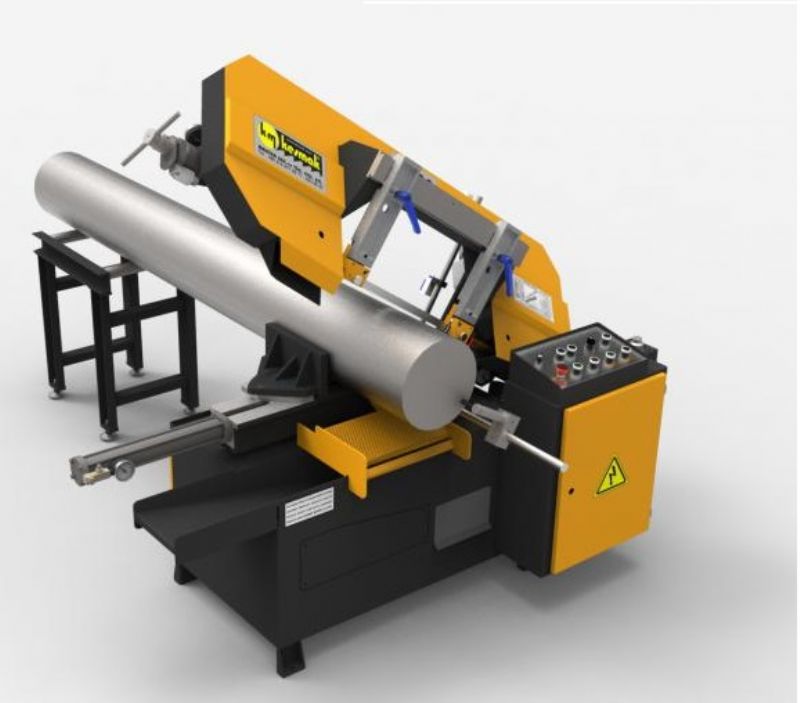

Articulated Semi-Automatic Band Sawing Machine
Articulated Semi-Automatic Band Saw Machine / Cutting Diameter 90: 280 mm / Cutting Diameter 45:160 mm / Saw Dimension. 3660 mm / Engine Power: 2.2 Kw
Subcategory
Cutting and Machining Machines
Technical Specifications
| Hydraulic Tank Volume / Hydraulic Tank Capacity (Lt) | 6.5L |
|---|---|
| Capacity 90° (mm) | ● Round (mm) |
| ■ Square (mm) | 260X260 |
| ▬ Rectangular (mm) | 210X340 |
| Capacity 45°(mm) | ● Round (mm) |
| ■ Square (mm) | 140X140 |
| ▬ Rectangular (mm) | 140X260 |
| Engines / Engines | Main Engine / Main Engine |
| Coolant Engine / Coolant Engine | 0.12KW |
| Hydraulic Motor / Hydraulic Motor | 0.18KW |
| Strip Size / Band Measurement (mm) | 0.9X27X3660MM |
| Coolant Tank Volume / Coolant Tank Capacity (Lt) | 27LT |
| Feeding Height (mm) | 725MM |
| Height-Width-Length (mm) | 1150X1220X1890 |
| Weight (kg) | 525KG |
