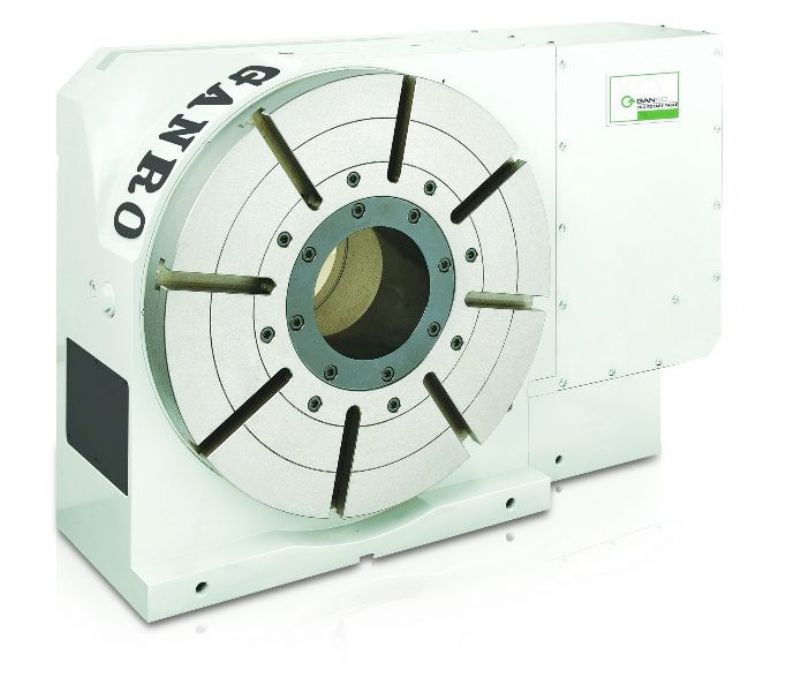

CNC 4th Axis Divider & CNC Rotary Table
CNC 4th Axis Divider & CNC Rotary Table / Table Diameter. 120-800 mm / Servo Motor / Loading Capacity: 75-3000 kg / Rotation Torque. 12-380 kg/m/Index Accuracy. 15-60 sec.
Subcategory
Hardware and Machine Equipment
Technical Specifications
| Table Diameter | Ø 120 mm |
|---|---|
| Table Hole Diameter | Ø 30mm |
| Table Center Height | 120mm |
| Total Height (Vertical) | 210mm |
| Total Height (Horizontal) | 162mm |
| T Channel Width | 10mm |
| Servo-motor | fanuc |
| Mitsubishi | HF-75 |
| Siemens | 1FK7042 |
| heidenhain | QSY96A |
| Max. Return Speed | 27.7 rpm. |
| Min. Entering a Value | 0.001° |
| Indexing Precision | 60 sec. |
| Locking Torque | pneumatic |
| Hydraulic | 30kg/m |
| Loading Capacity | Horizontal |
| Vertical | 35 kg. |
| Turning Torque | 12 kg/m. |
| Weight | 35 kg. |
