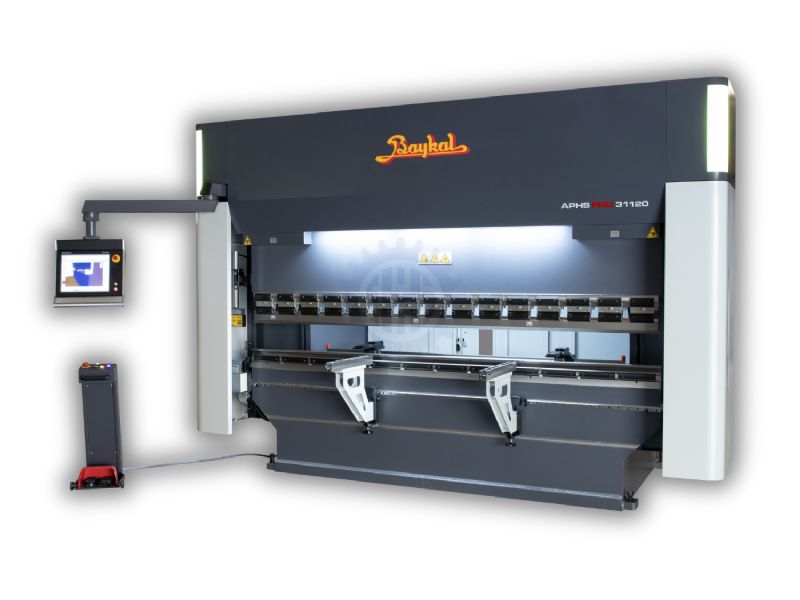

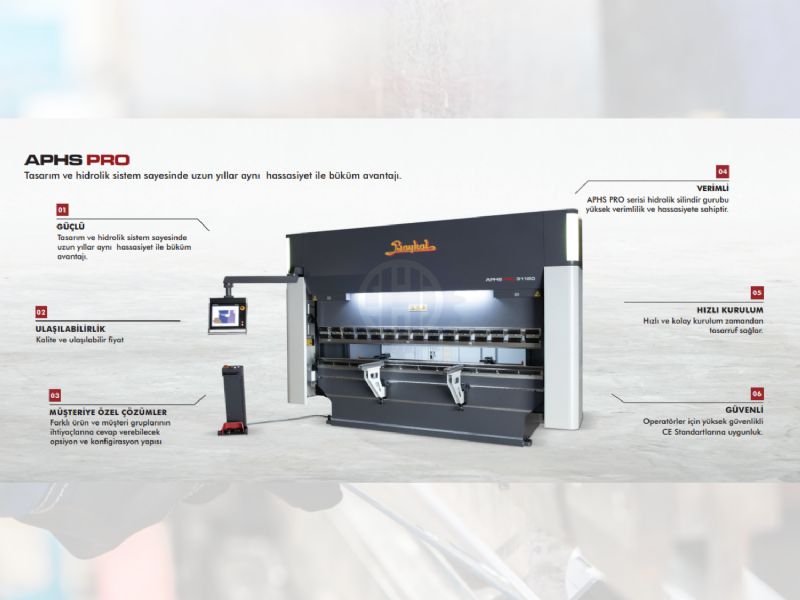

CNC Hydraulic Press Brake
Subcategory
Sheet Metal Processing Machines
Technical Specifications

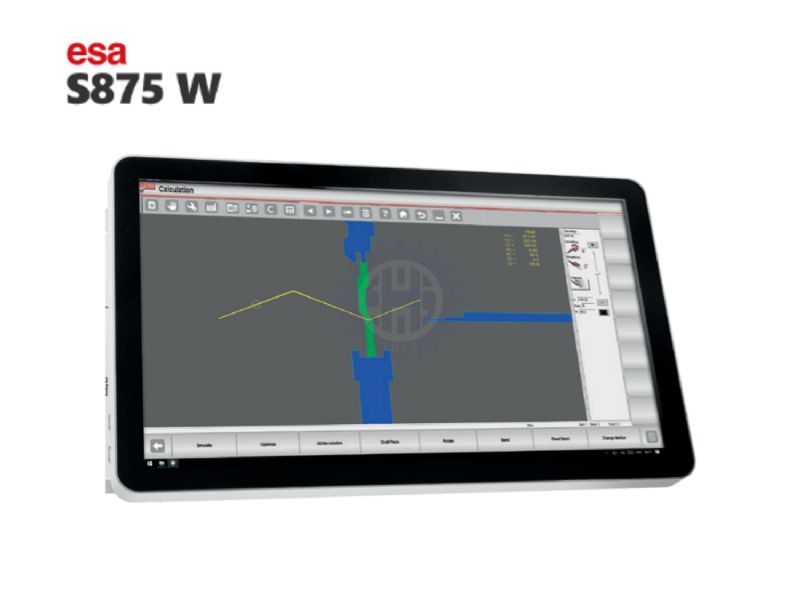

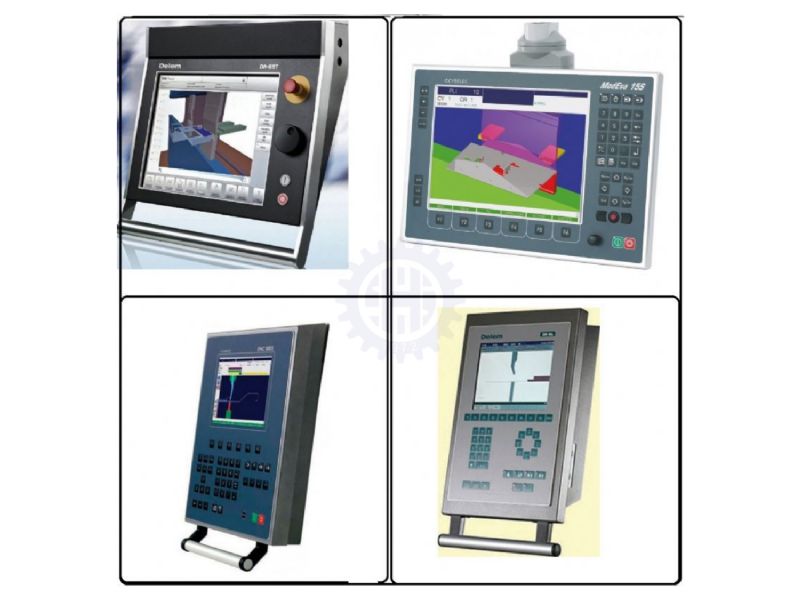

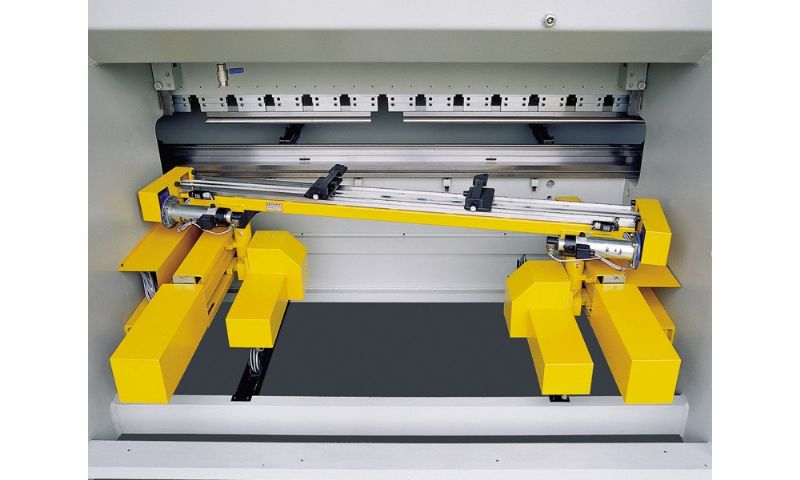

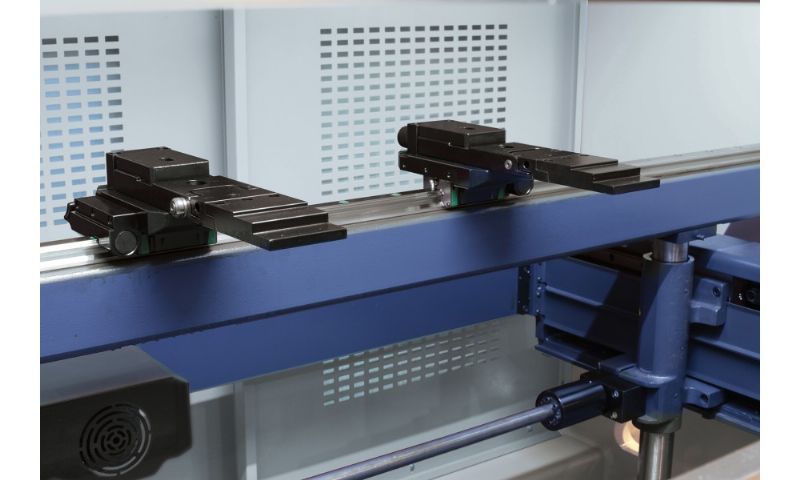

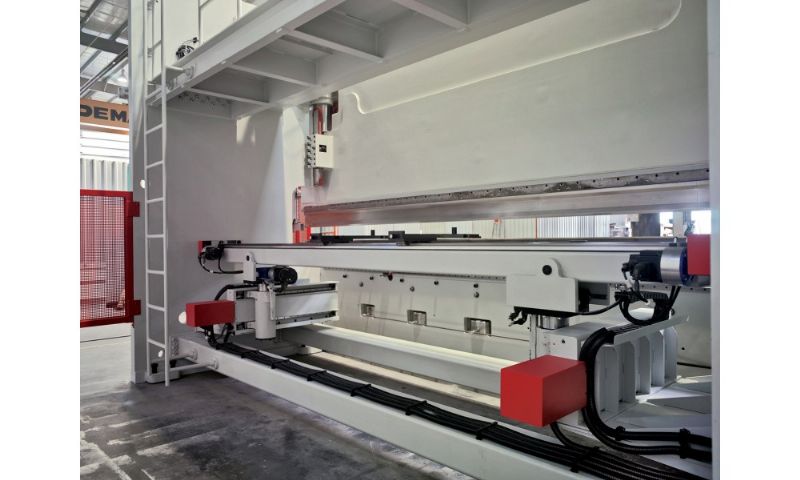

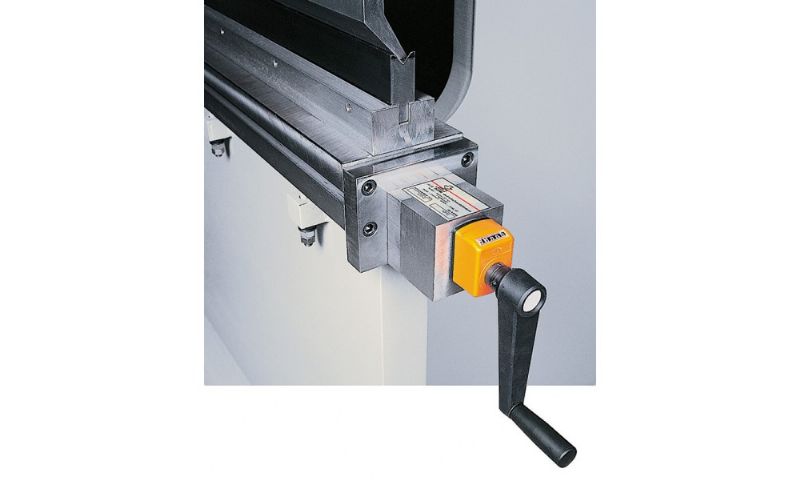

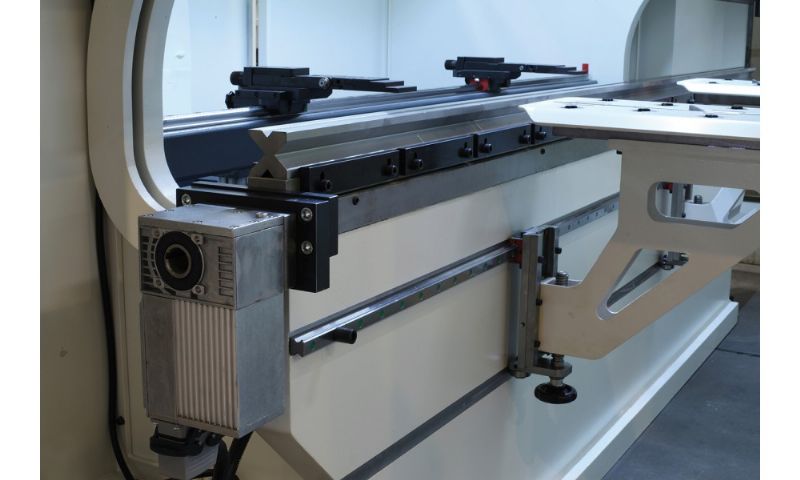

| General Features | New type body design. Energy-saving European hydraulic system. Delem 66T CNC control unit. 2 axis backgauge. (X-R) Motorized CNC crowning. Narrow table system. Akas II safety system. Motorized rear guard. Two brush type forearms. |
|---|---|
| x-axis | 1000mm |
| R-axis | 160mm |
| Z-axis | Variable |
| CNC Control Features | Graphical control unit that provides complete programming and machine control features in an easy-to-use computer environment. Programmable multi-axis control. Y1-Y2 cylinder axes. X1-X2-R1-R2-Z1-Z2 backgauge axes. CNC lower table crowning axis. Modular expansion possibility for additional axes. High memory capacity for pattern information and program steps. Possibility of high number of product and twist repetitions. Direct graphical programming that enables automatic calculation of all axis positions and bending sequences in a graphical simulation environment. Product programming by entering direct bending angle or absolute value. Programmable or automatically calculated functions for each CNC program and bending sequence: bending length/thickness, material selection, mold selection, bending method, mute position, pinching point, pressing force/speed, backgauge incre mental movement and retraction, stop time, waiting time for axes repositioning, decompression distance/speed, taper bend adjustment, Y and X axis corrections. Possibility of manual use of all axes. Possibility to reprogram all axes during operation. (teach-in) Language option. Integrated diagnostic program. Uploading information to flash disk via USB port. |
| Backgauge Options | (A) X-axis backgauge system: X1 - X2 |
| x-axis | 350mm/s |
| R-axis | 240mm/s |
| Z-axis | 1000mm/s |
| x-axis | ±0.03mm |
| R-axis | ±0.05mm |
| Z-axis | ± 0.05 mm (D) Backgauge axis additions for special applications: Movement on ball bearings |
| x-axis | 1000mm |
| R-axis | 160mm |
| x-axis | 350mm/s |
| R-axis | 240mm/s |
| x-axis | ±0.03mm |
| R-axis | ± 0.05 mm (C) X-R-Z1-Z2 -axis back gauge system: Movement on ball bearings |
| stop distance | 1000mm |
| Movement speed (maximum) | 330mm/s |
| Position accuracy | ± 0.03 mm (B) Segmented, universal upper mold and multi-channel lower mold. Foot-pedal control console. Front support arms moving on the rail car. Electric-switched, side and rear guards. Optional Manual or motorized (CNC) crowning table. Mechanical easy assembly/removal system for the upper mould. Hydraulic mold clamping systems. Special molds for customer applications: Upper and lower molds with special profiles. Single-channel lower molds with adapter tray. For additional safety, front light barrier or laser guard. Energy saving. |
