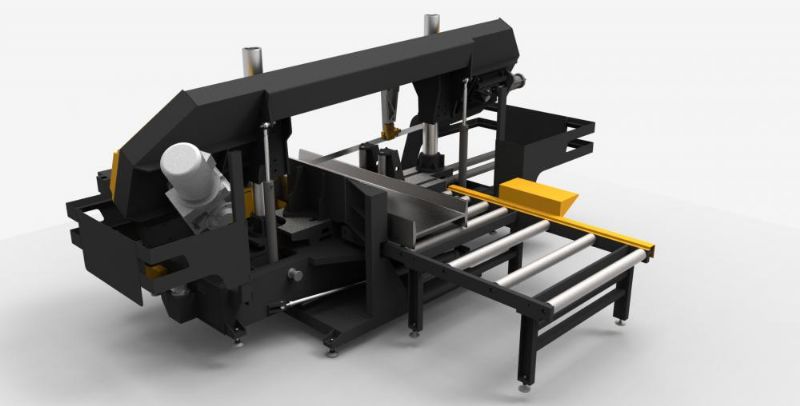

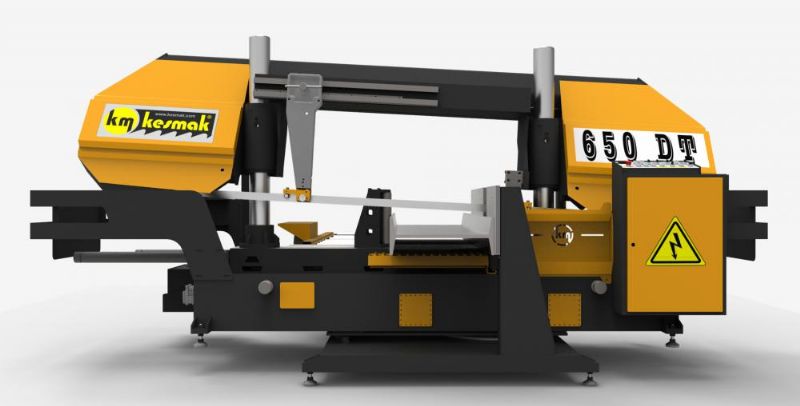

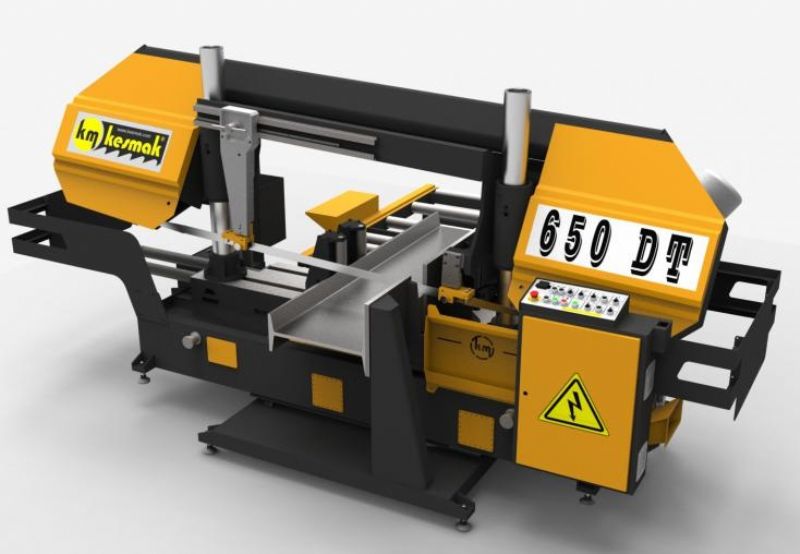

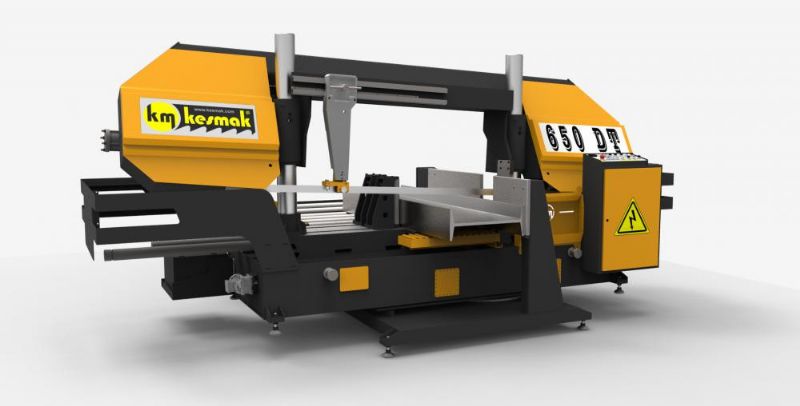

Column Semi-Automatic Angle Cutting Band Saw
KESMAK KSY DT 650 / Column Type Semi-Automatic Angled Cutting Band Sawing Machine
Subcategory
Cutting and Machining Machines
Technical Specifications
| Capacity 90° (mm) | ● Round (mm) |
|---|---|
| ■ Square (mm) | 600X600 |
| ▬ Rectangular (mm) | 600X1100 |
| Capacity 45° (mm) | ● Round (mm) |
| ■ Square (mm) | 600X600 |
| ▬ Rectangular (mm) | 600X700 |
| Engines / Engines | Main Engine / Main Engine |
| Coolant Engine / Coolant Engine | 0.12KW |
| Hydraulic Motor / Hydraulic Motor | 1.1KW |
| Strip Size / Band Measurement (mm) | 1.6X54X8330 |
| Coolant Tank Volume / Coolant Tank Capacity (Lt) | 90LT |
| Hydraulic Tank Volume / Hydraulic Tank Capacity (Lt) | 36LT |
| Feeding Height (mm) | 740MM |
| Height-Width-Length (mm) | 2200X1820X4600MM |
| Weight (kg) | 3800KG |
