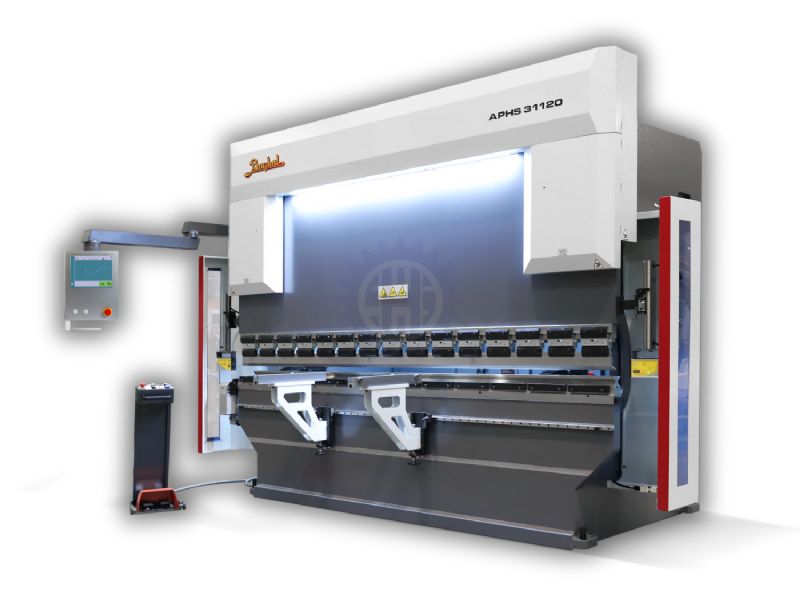

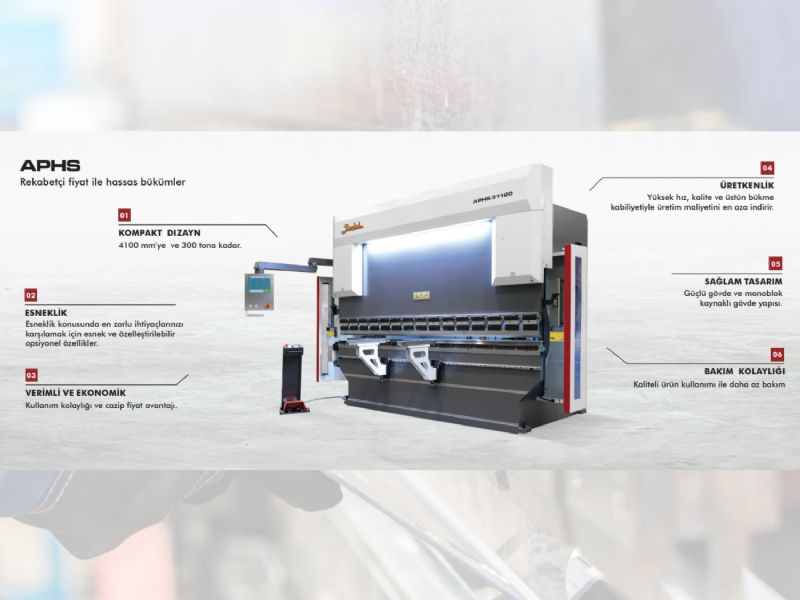

Compact ECO CNC Hydraulic Press Brake
Subcategory
Sheet Metal Processing Machines
Technical Specifications
| A Bending Length | 4100mm |
|---|---|
| B Between Feet | 3550mm |
| C Foot Width | 1820mm |
| G Lower Jaw Height | 980mm |
| H Height of Machine | 3200mm |
| K Jaw Opening | 635mm |
| L Stroke | 320mm |
| M Table Width | 280mm |
| N Throat Depth | 500mm |
| Oil tank volume | 280 liters |
| Speeds - Descent | 120mm/s |
| - Basma | 8mm/s |
| - Takeoff | 90mm/s |
| Approximate weight | 18,500kg |
| Print Tonnage | 300 tons |

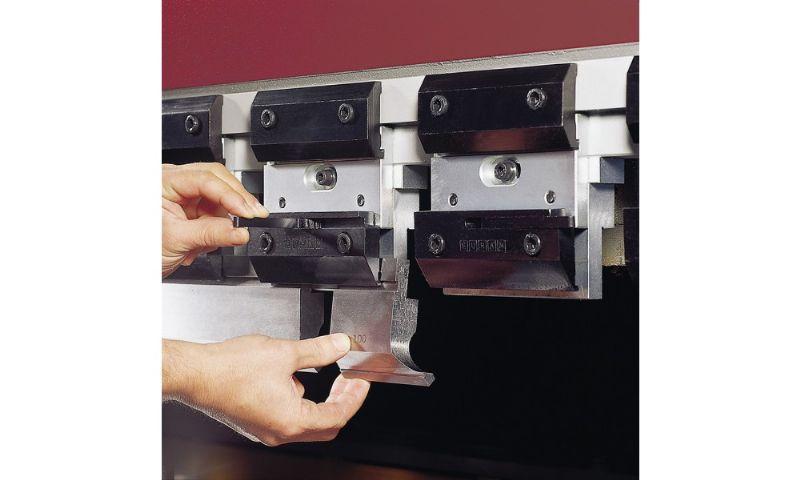

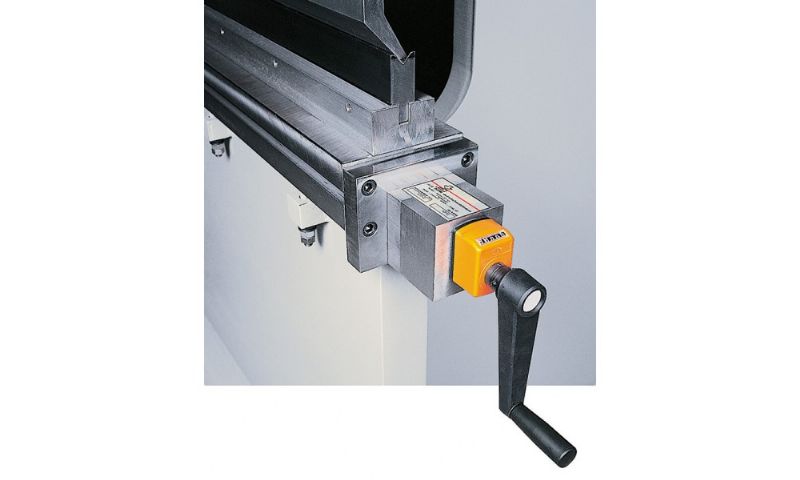

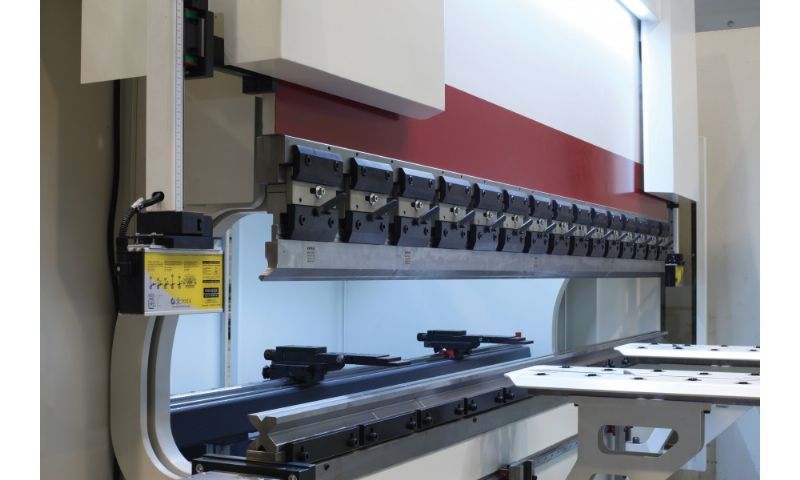

| Engine Power | 22 kW General Features: Very easy to use CNC system with all necessary bending calculations and a large memory mold library. Suitable for mass production requiring constant repeatability as well as complex shapes with multiple bends. Twisting precision and repeatability are at least five times higher than conventional press brakes. Fully synchronized Y1-Y2 axes down to +-0.01mm thanks to proportional valve technology and precise linear scales. Very fast backgauge with AC servo drive controlled by CNC. European-style upper mold holders with universal adapter. Partial upper mold. Segmented lower mold. High stroke and jaw opening values. Extra deep throat. (350 / 380 mm) Two support arms moving on the rail car. Double pedal foot console with emergency stop button. Movable joystick. Switched side and rear guards. Electrical cabinet with PLC support and cooling fan, consisting of numbered cables. Monoblock, welded body with static and dynamic rigidity. Upper jaw movement supported by low-friction fiber slide bearings. Various holder, mold and crowning options. |

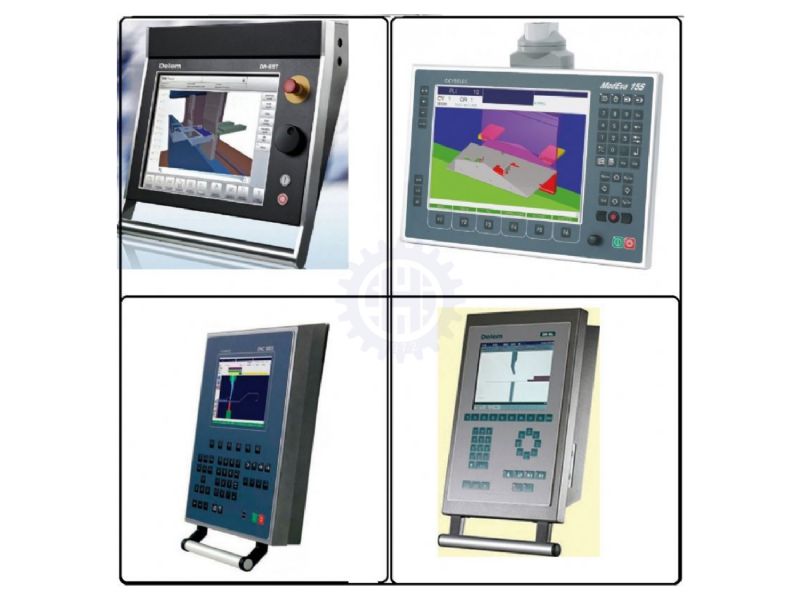

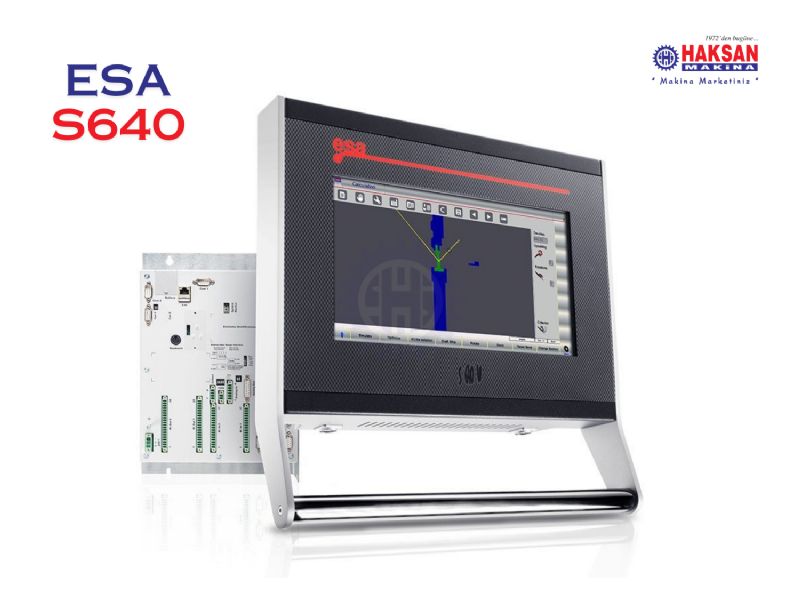

| CNC Control Features | Control type: 4 axis numerical CNC, Baykal EC4. Controllable machine axes: Y1-Y2 cylinders, 2 backgauge axes, crowning axis. Automatic detection of the most appropriate numerical twist sequence with collision detection. 2D graphic editor for entering pattern information. Programming of axis positions with automatic controls; Automatic calculation of R axis position, compartment tonnage and crowning. High capacity memory for program steps and pattern information, 7000 programs and 80-step capacity in each program, high product quantity and 99 repetition possibilities for each program step. A two-dimensional graphic (2D off-line) software program is included with the machine free of charge to make bending files that can be transferred to the control via a USB flash disk. Product programming by entering direct bending angle or absolute value. Programmable or automatically calculated functions for each CNC program: bending length/thickness, material selection, mold selection, bending method, mute position, pinching point, pressing force/speed, back gauge incremental movement and retraction, stop time, waiting time for axes repositioning, decompression speed, taper bend adjustment, Y and X axis correction. Possibility of manual use of all axes. 16 different language options. Loading program and pattern information to USB flash disk. |

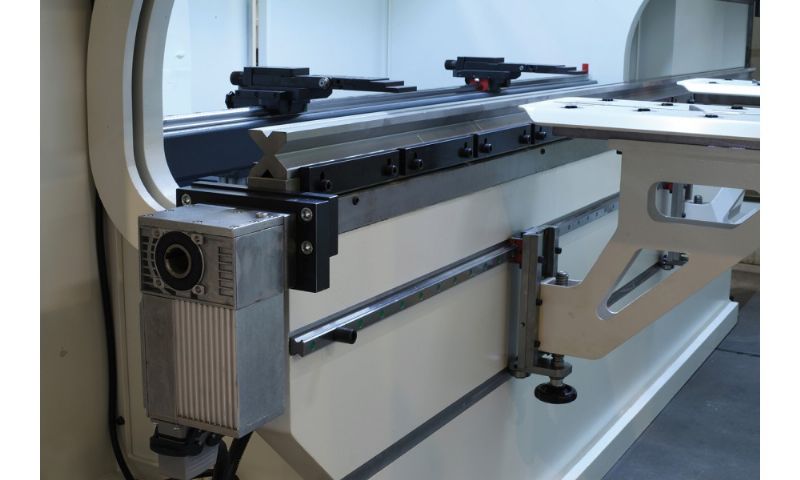

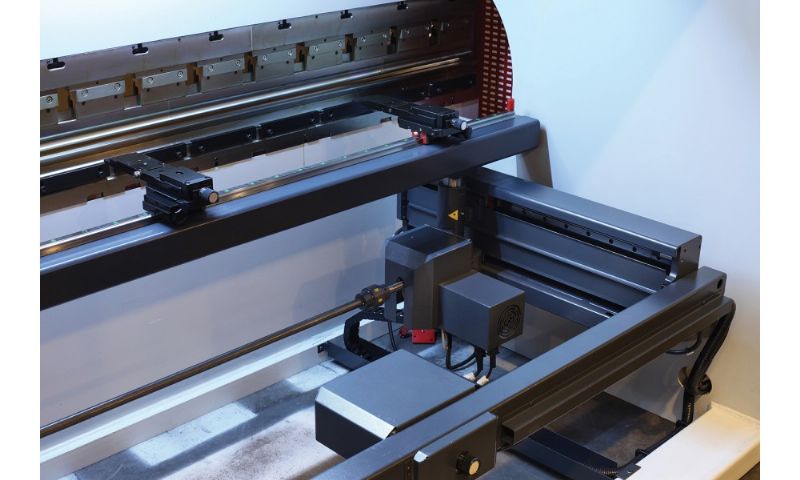

| Backgauge Options | (A) X-axis backgauge system: Movement on ball bearings |
| X-axis | 650mm. |
| R-axis | 160mm. |
| X-axis | 350mm/s. |
| R-axis | 240mm/s. |
| X-axis | +-0.03mm. |
| R-axis | +-0.05mm. |
