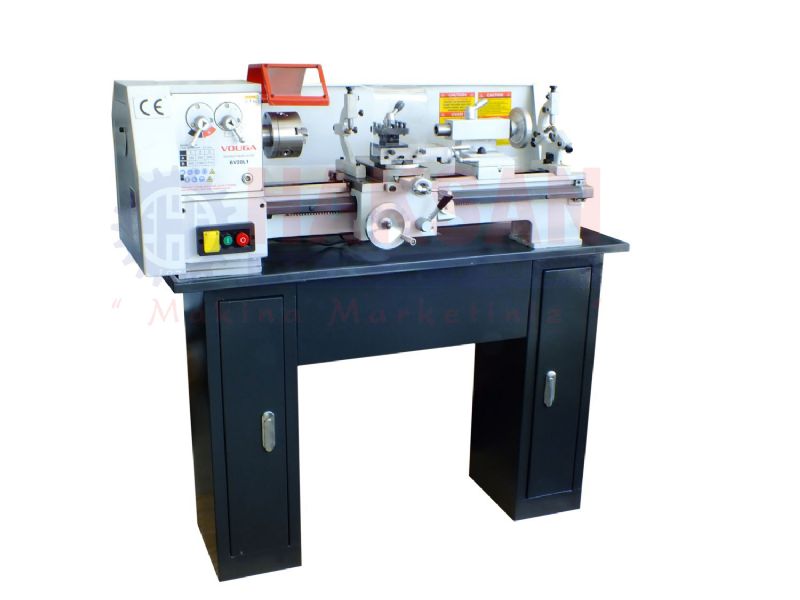

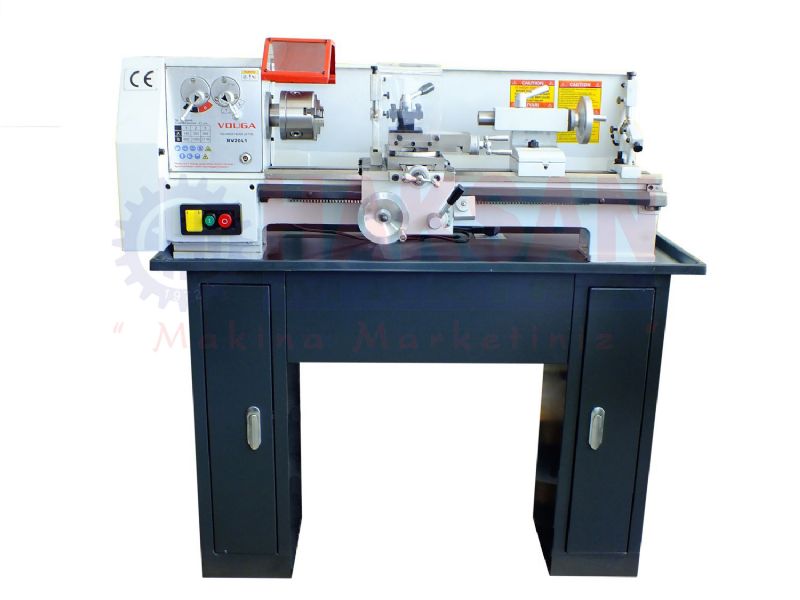

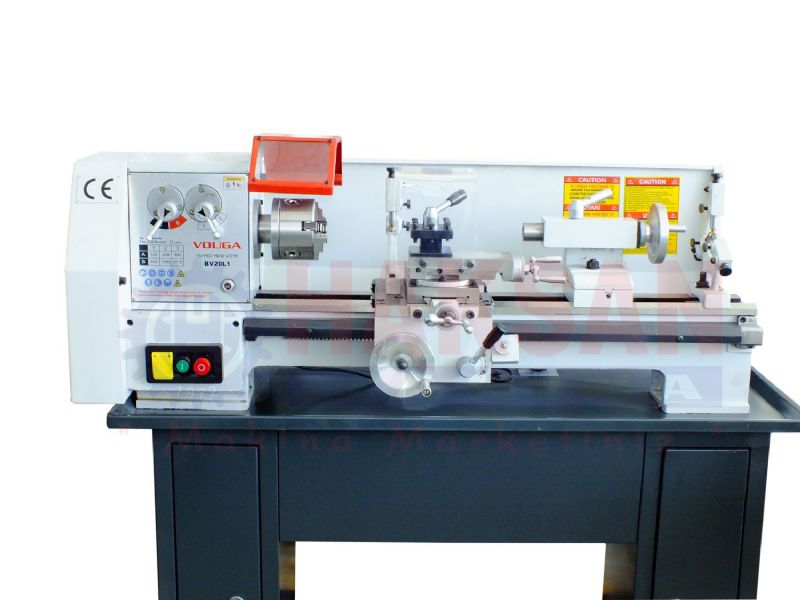

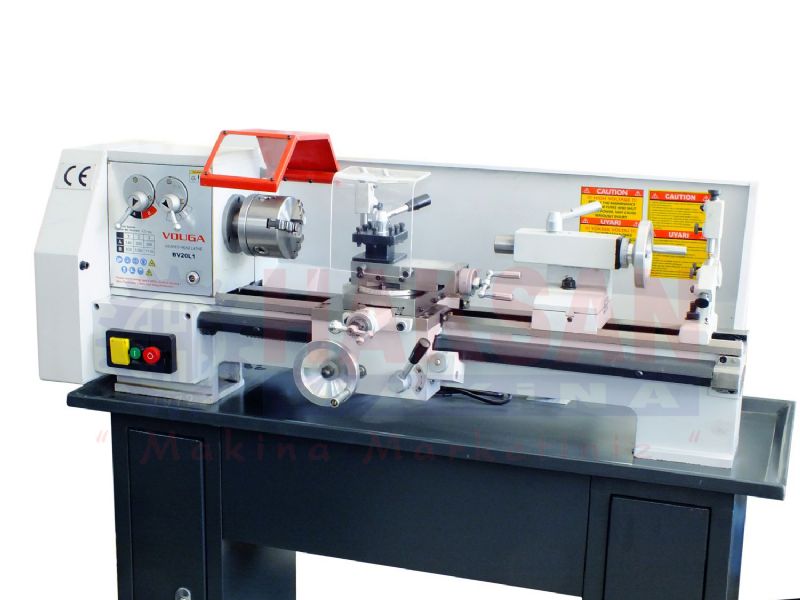

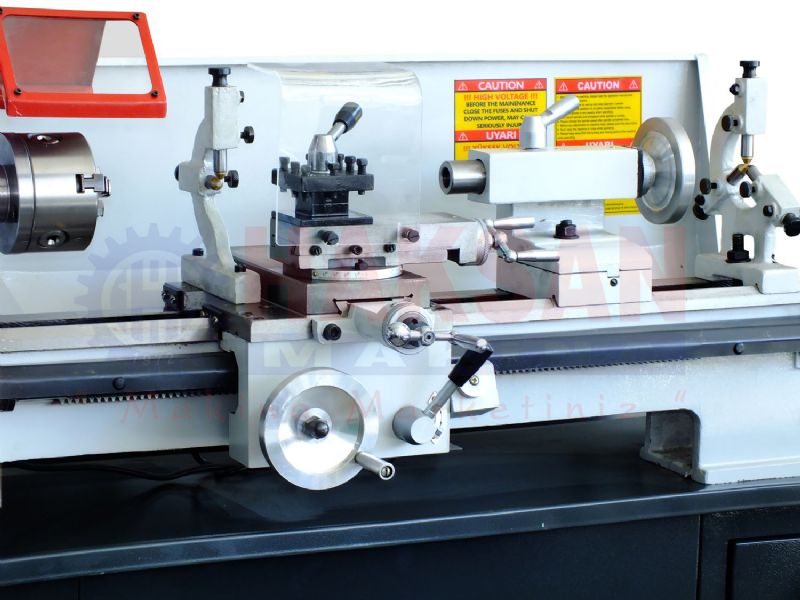

Desktop Lathe 50 CM
Desktop Lathe / Turning Diameter: 220 mm / Distance Between Center Centers_ 500 mm / Transmission System with Gearbox / Threading Feature
Subcategory
Cutting and Machining Machines
Technical Specifications
| Tailstock Height | 110mm |
|---|---|
| Distance Between Spots | 500mm |
| Diameter Turned on the Bench | 220mm |
| Diameter over Sport | 115mm |
| Amount of Transverse Movement | 105mm |
| Cross Sport Movement Amount | 70mm |
| Spindle Taper | MT 3 |
| Spindle Speed Range and Stage | 140-1710 rpm / 6 Stages |
| Screw Threads | Metric |
| inch | 8 - 32 TPI |
| Longitudinal Progression Area | 0.05 - 0.15 mm/min. |
| Countertail Spindle Movement Amount | 50mm |
| Counterstock Morse Taper | MT2 |
| Main Engine Power | 0.55 kW / 220 V - 380 V |
| Dimensions (L x W x H) | 115 x 55 x 110cm |
| Weight | 140kg |
