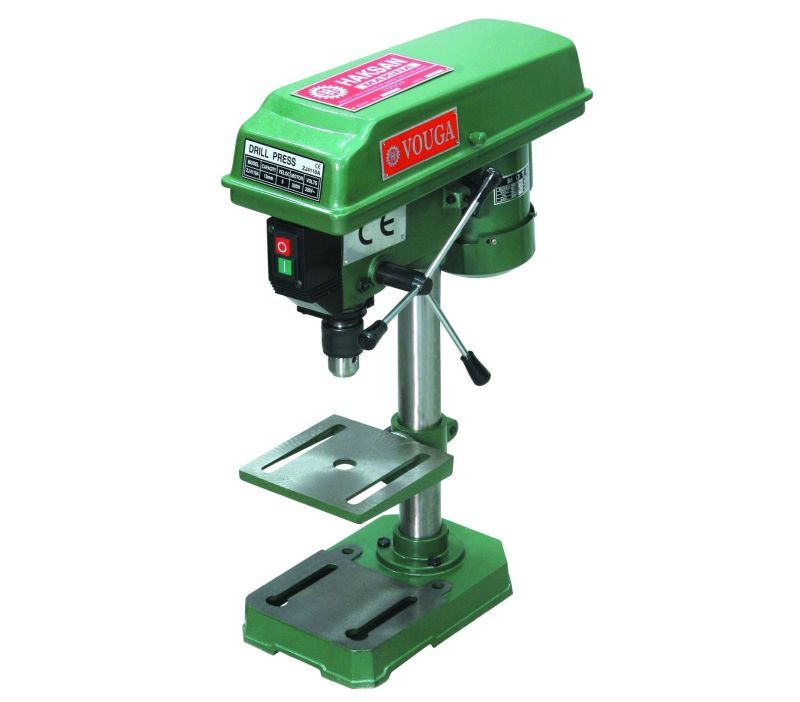

Desktop Small Drilling Machine
Desktop Drilling Machine / Drilling Capacity. 13 mm / B-16 / Rack Table / High Speed
Subcategory
Cutting and Machining Machines
Technical Specifications
| MODEL | ZJ 4113 / Rack and Rack Table |
|---|---|
| Drilling Capacity | 13 mm / B-16 / Revolution: 515-2580 rpm. |
| Max. Drilling Capacity | 13mm |
| Work Table | 160x160mm |
| Shaft Descent Movement | 50mm |
| Bottom Table | 290x190mm |
| Column Diameter | 46mm |
| Spindle Speeds (Gradual) | 515-2580 (5Cad.) |
| Pinole Tip | B16 |
| Engine Power | 375 W - 1/2 HP |
| Height | 610mm |
| Package Dimensions | 450x340x230mm |
| Weight | 20kg. |
