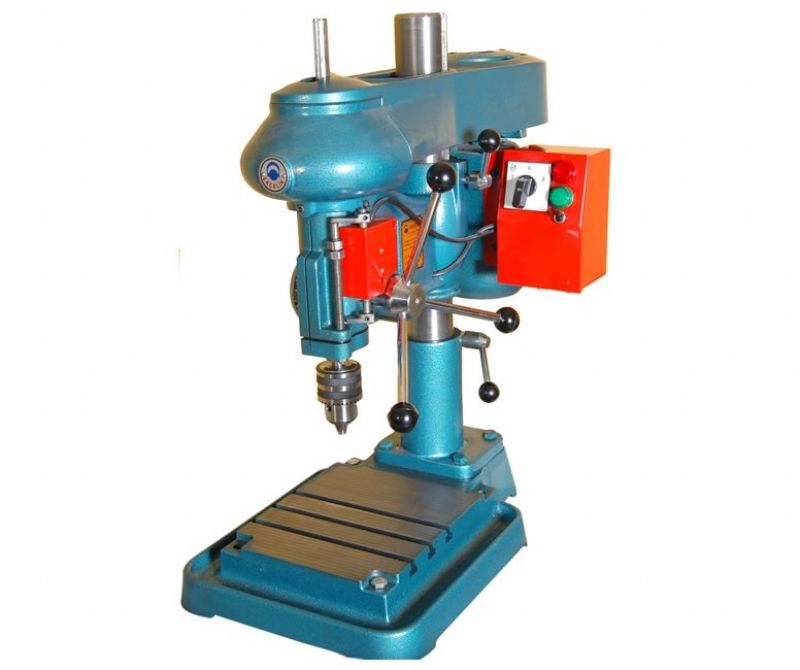

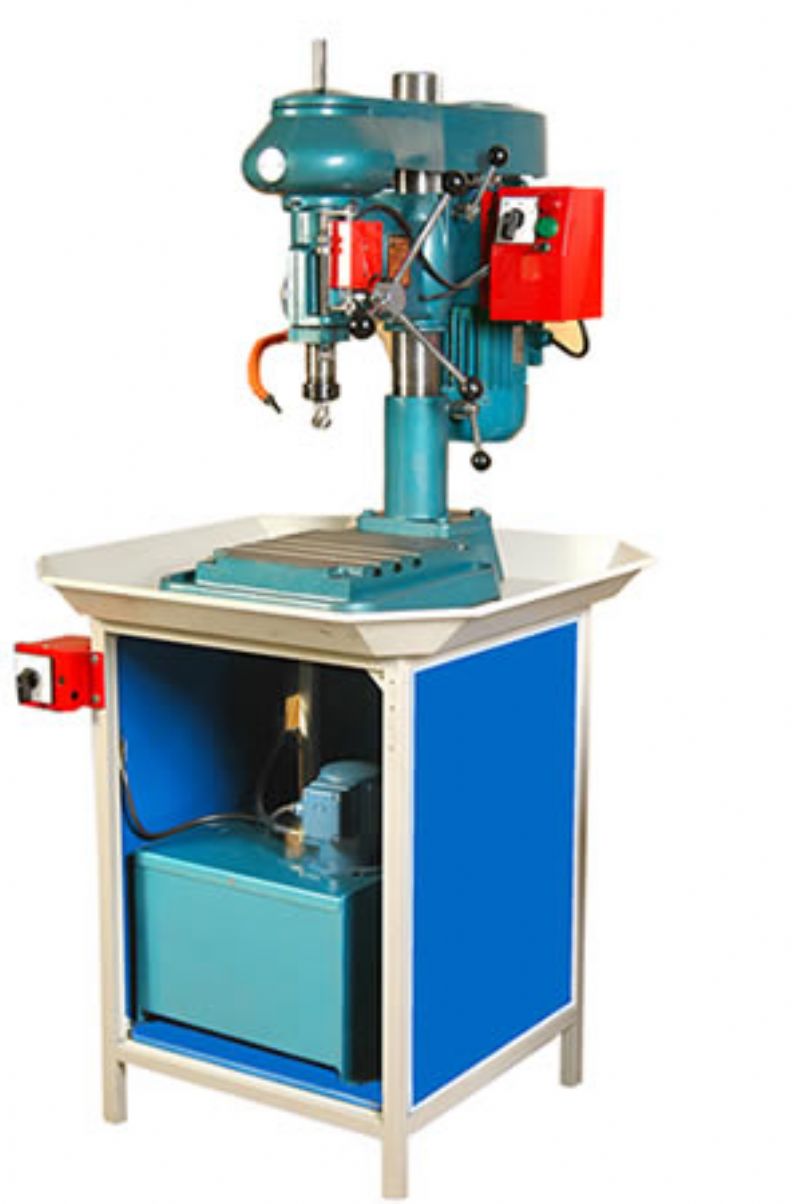

Desktop Tapping Drilling Machine
The Desktop Tapping Drilling Machine DK-13 offers versatile drilling and threading capabilities, ideal for precision metal processing. With adjustable speeds and robust power, it enhances productivity in manufacturing and maintenance applications.
First time importing from Türkiye?
Read the guide
Subcategory
Cutting and Machining Machines

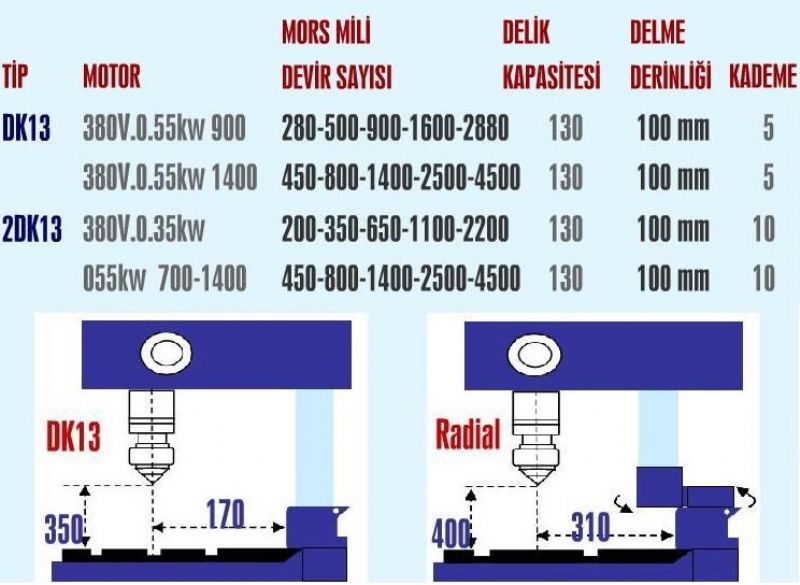

Technical Specifications
| MODEL | DK-13 / SINGLE SPEED / DK 13_Speed: 280-2800 rpm. & 450-4500 rpm |
|---|---|
| Drilling Capacity | 16mm/B-16 |
| Engine Power | 0.55 Kw 900 RPM |
| Drill Age | 280 - 2880 rpm 5 Levels Between |
| Drilling Capacity | 16mm |
| Threading Capacity | M 12 |
| Drilling Depth Distance | 90mm |
| Morse Shaft Taper | B 16 |
| Max. Height Distance Between Table and Chuck | 350mm |
| Distance between Column Shaft and Chuck Tip | 170mm |
| Table Usage Area | 245 x 300 |
| Table T Channel 3 Pieces T Channel Dimension | 12x21x19 |
| Engine Power | 0.55 Kw 1400 RPM |
| Drill Age | 450 - 4500 rpm 5 Levels Between |
| Drilling Capacity | 13mm |
| Threading Capacity | M 10 |
| Drilling Depth Distance | 90mm |
| Morse Shaft Taper | B 16 |
| Max. Between Table and Chuck. Altitude Distance | 350mm |
| Distance between Column Shaft and Chuck Tip | 170mm |
| Table Usage Area | 245 x 300 |
| Table T Channel 3 Pieces Channel Dimensions | 12x21x19 |
