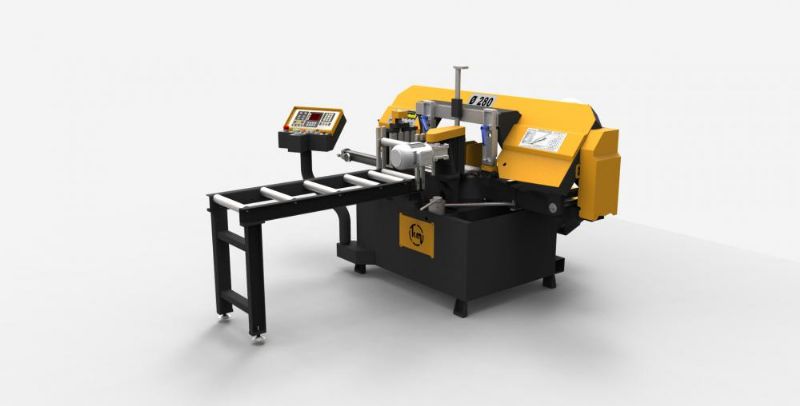

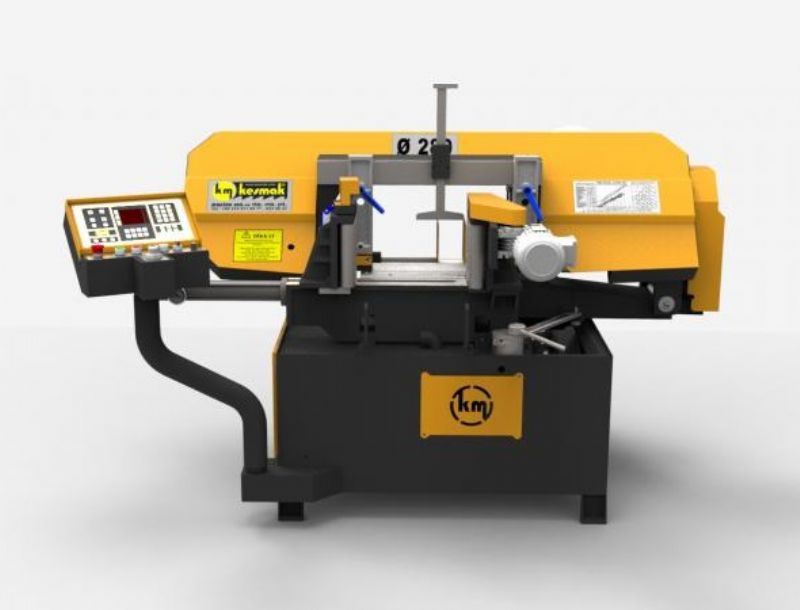

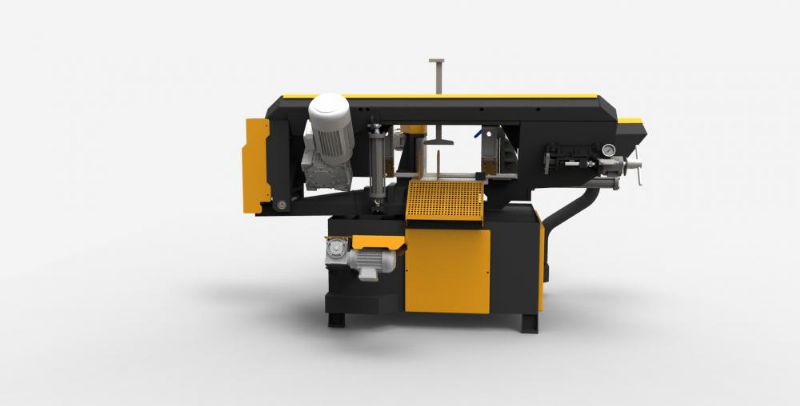

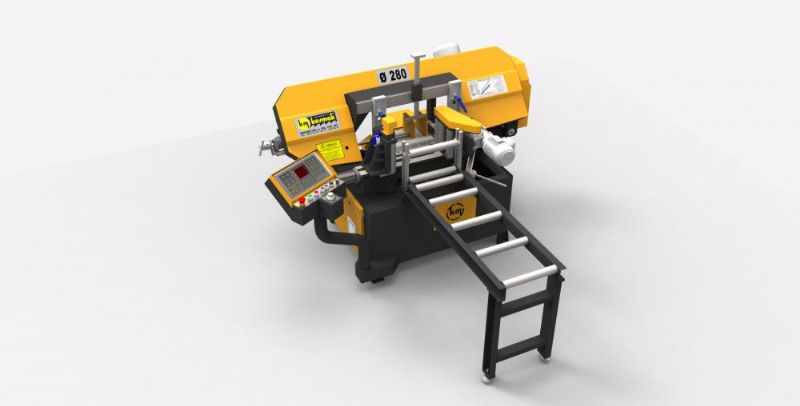

Electronic Angle Cutting Rotary Belly Band Sawing Machine, 90 Ton
Cutting 90°: 280 mm - 45°: 230 mm / Strip Size: 3660 mm / Engine Power: 2.2 KW
The Electronic Angle Cutting Rotary Belly Band Sawing Machine offers precision cutting for various metal profiles, enhancing efficiency in manufacturing. With robust specifications, including a 6000mm sliding length and versatile capacity for round, square, and rectangular materials, it ensures optimal performance and reliability for industrial applications.
First time importing from Türkiye?
Read the guide
Subcategory
Cutting and Machining Machines
Technical Specifications
| Capacity 90° (mm) | ● Round (mm) |
|---|---|
| ■ Square (mm) | 280X280 |
| ▬ Rectangular (mm) | 220X340 |
| Capacity 45°(mm) | ● Round (mm) |
| ■ Square (mm) | 220X220 |
| ▬ Rectangular (mm) | 240X140 |
| Engines / Engines | Main Engine / Main Engine |
| Coolant Engine / Coolant Engine | 0.12KW |
| Hydraulic Motor / Hydraulic Motor | 0.18KW |
| Drive Motor / Driving Motor | 0.37KW |
| Conveyor Engine / Conveyor Engine | 0.18KW |
| Strip Size / Band Measurement (mm) | 0.9X27X3660MM |
| Coolant Tank Volume / Coolant Tank Capacity (Lt) | 30 LT |
| Hydraulic Tank Volume / Hydraulic Tank Capacity (Lt) | 6.5L |
| Feeding Height (mm) | 760MM |
| Sliding Length (mm) | 6000MM |
| Height-Width-Length (mm) | 1190 x 1740 x 1990 |
| Weight (kg) | 776KG |
Electronic Angle Cutting Rotary Belly Band Sawing Machine, 90 Ton
