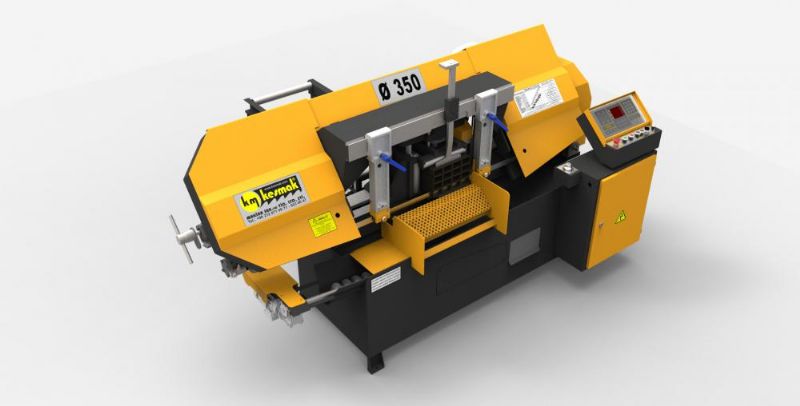

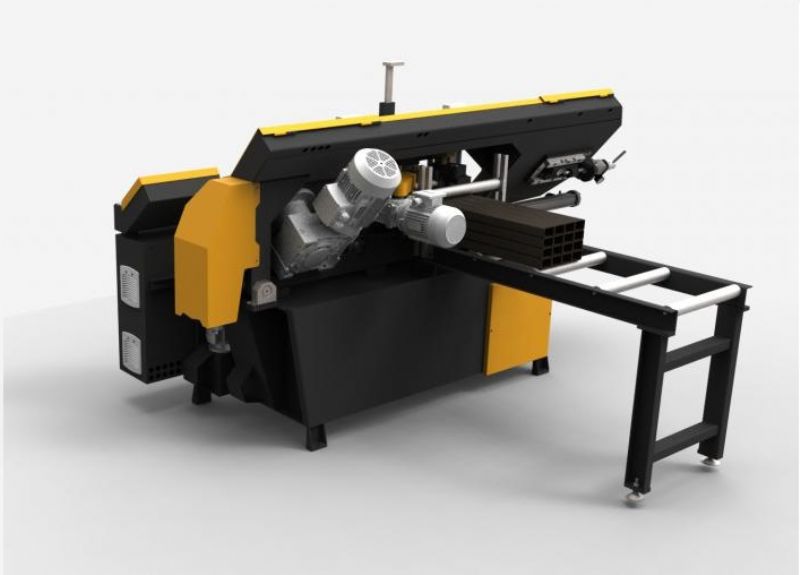

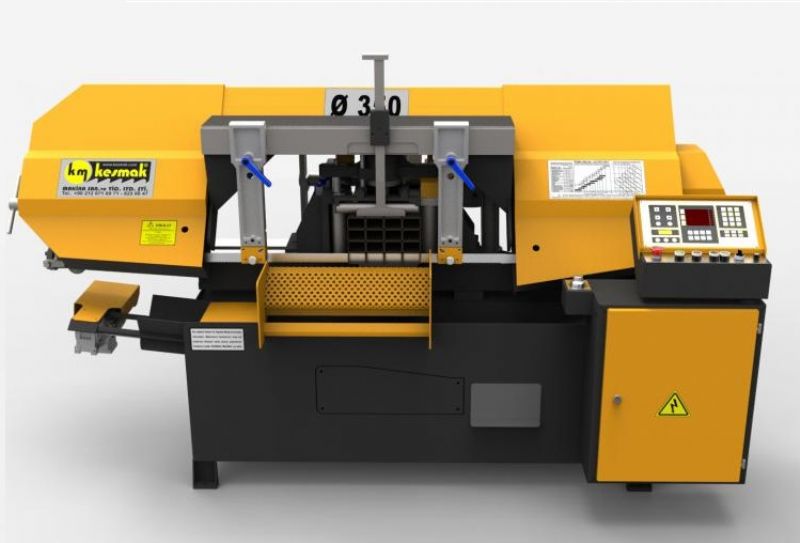

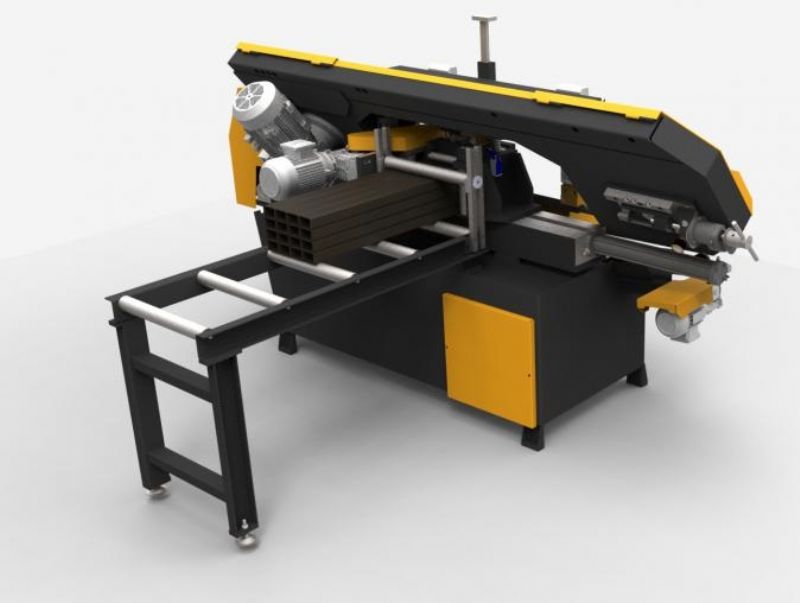

Electronic Group Cutting Articulated Band Saw, 310x400 mm, 50 Lt
The Electronic Group Cutting Articulated Band Saw is designed for precision metal cutting, offering a capacity of 310mm for square and 400mm for rectangular materials. Its robust motors and efficient coolant system ensure optimal performance and durability, making it ideal for high-volume industrial applications.
First time importing from Türkiye?
Read the guide
Subcategory
Cutting and Machining Machines
Technical Specifications
| Capacity 90° (mm) | ● Round (mm) |
|---|---|
| ■ Square (mm) | 310X310 |
| ▬ Rectangular (mm) | 310X400 |
| Engines / Engines | Main Engine / Main Engine |
| Coolant Engine / Coolant Engine | 0.12KW |
| Hydraulic Motor / Hydraulic Motor | 0.18KW |
| Drive Motor / Driving Motor | 0.55KW |
| Conveyor Engine / Conveyor Engine | 0.18KW |
| Strip Size / Band Measurement (mm) | 1.1X34X4860MM |
| Coolant Tank Volume / Coolant Tank Capacity (Lt) | 50LT |
| Hydraulic Tank Volume / Hydraulic Tank Capacity (Lt) | 6.5L |
| Feeding Height (mm) | 745MM |
| Sliding Length (mm) | 6000MM |
| Height-Width-Length (mm) | 1300X1200X2515 |
| Weight (kg) | 980KG |
