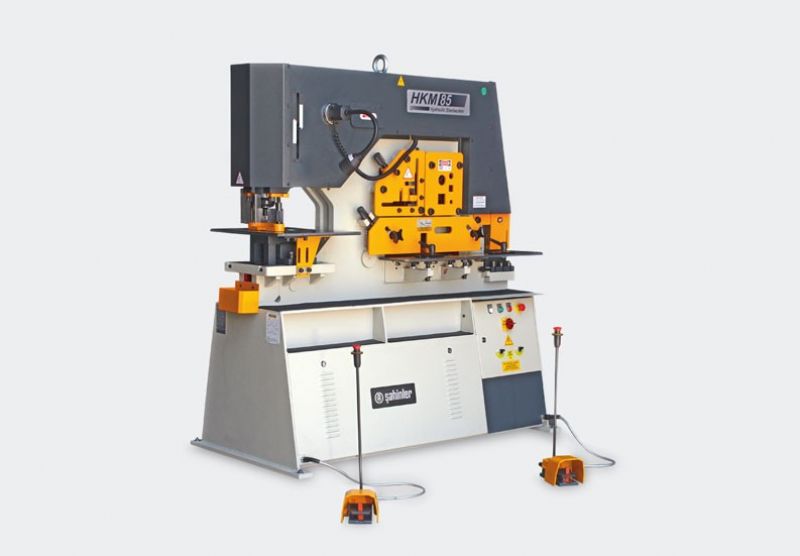

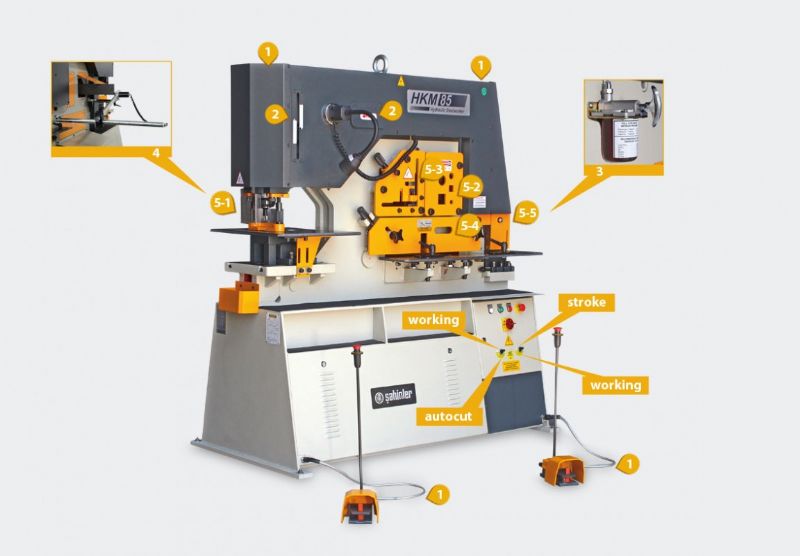

Hydraulic Double Piston Combination Shear
ŞAHİNLER HKM 85 Double Piston Hydraulic Combined Scissors / Drilling, Cutting and Stapling
Subcategory
Sheet Metal Processing Machines
Technical Specifications
| Standard equipment | HOLE PUNCH |
|---|---|
| Diameter Ø at maximum thickness | Ø 33 x 20 mm |
| Diameter x thickness (xt) | Ø 57 x 12 mm |
| Thickness at maximum diameter | Ø 110 x 4 mm |
| business course | 80mm |
| Number of courses | x 25 |
| groove depth | 355mm |
| Working height | 1080mm |
| Standard equipment | FULL MATERIAL SCISSORS |
| Round / square | Ø 50- 50 mm |
| Standard equipment | CORNER BAR CUTTING SCISSORS |
| Vertical angle (90°) | 150x150x15mm |
| Angled angle (45°) | 80x8mm |
| Working height | 1200mm |
| Standard equipment | SHEET SCISSORS (LAM CUTTING) |
| flat sheet | 380x20mm |
| flat sheet | 480 x 15mm |
| blade length | 482mm |
| Angled cut | 120 x 15mm |
| Working height | 940mm |
| Standard equipment | NOTCHING |
| Material thickness | 13mm |
| Width | 52mm |
| Depth | 100mm |
| Working height | 940mm |

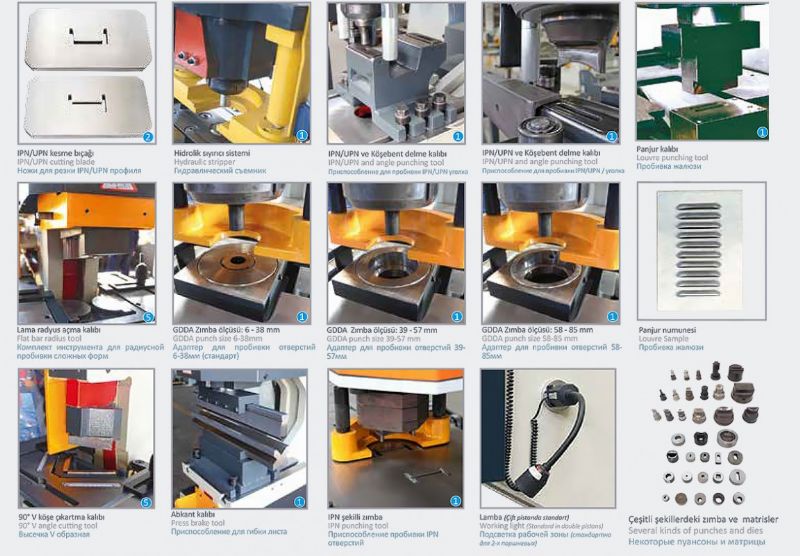

| Optional equipment | SPECIAL MOLDS |
| U-I profile blades (UPN - IPN cutting | 160 x 74mm |
| T profile blades | 100x11mm |
| Optional equipment | Special notch set |
| Optional equipment | V curl Lama curl maximum |
| V curling Sheet bending maximum | 500x4mm |
| Optional equipment | Punch in the notch part Jaw depth |
| Punch in the notch section Sheet bending maximum | Ø 38 x10 mm |
| engine power | 7. 5 kW 2315 kg 1920x950x2040 mm 85 tons |
