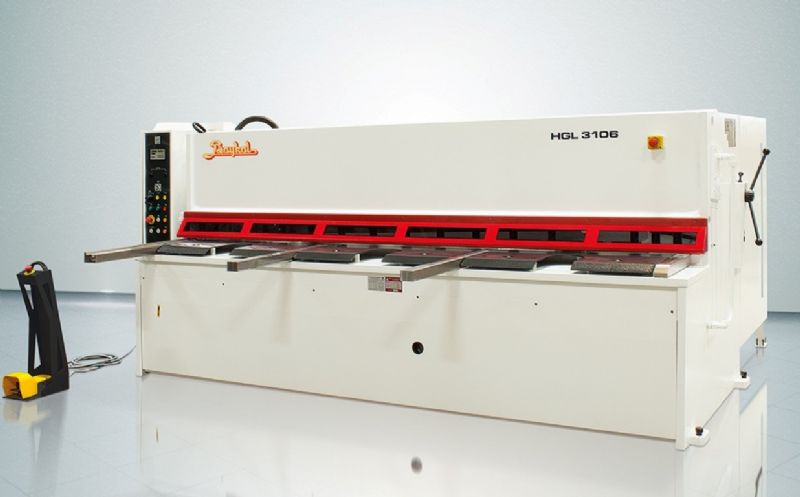

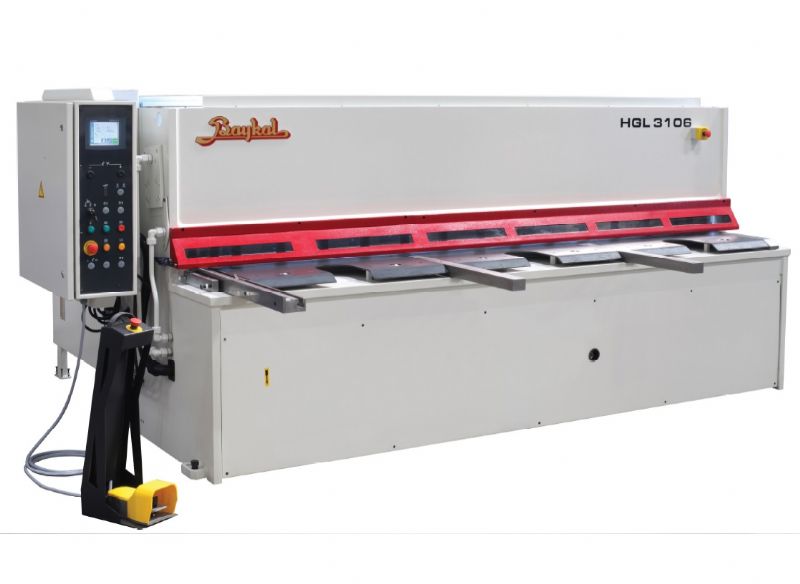

Hydraulic Guillotine Shear NC Controlled
The NC Controlled Hydraulic Guillotine Shear excels in precision sheet metal processing, offering a cutting capacity of 6 mm with a 3060 mm length. Its efficient design ensures rapid production with 20 strokes per minute, ideal for high-demand industrial applications.
First time importing from Türkiye?
Read the guide
Subcategory
Sheet Metal Processing Machines
Technical Specifications
| Technical Information A | 3260mm |
|---|---|
| B. | 430mm |
| C. | 1320mm |
| D. | 480mm |
| TO | 1200mm |
| g | 800mm |
| H | 1570mm |
| Cutting Length | 3060mm |
| Cutting Capacity | 6 mm (St. – 45 kg/mm²) |
| Number of Strokes | 20 pcs/min |
| Cutting Angle | 1.6° |
| engine power | 11kW |
| Number of Prints | 17 pieces |
| Oil tank capacity | 160 liters |

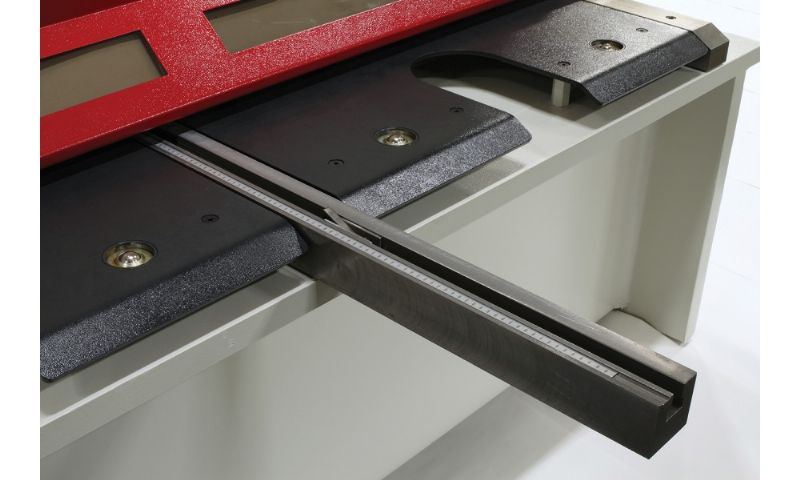

| Back gauge opening | 750mm |
| Back gauge Motor | 0.37 kW |
| Approximate weight | 5,500kg |
Hydraulic Guillotine Shear NC Controlled
Hidrolik Giyotin Makas-13553
