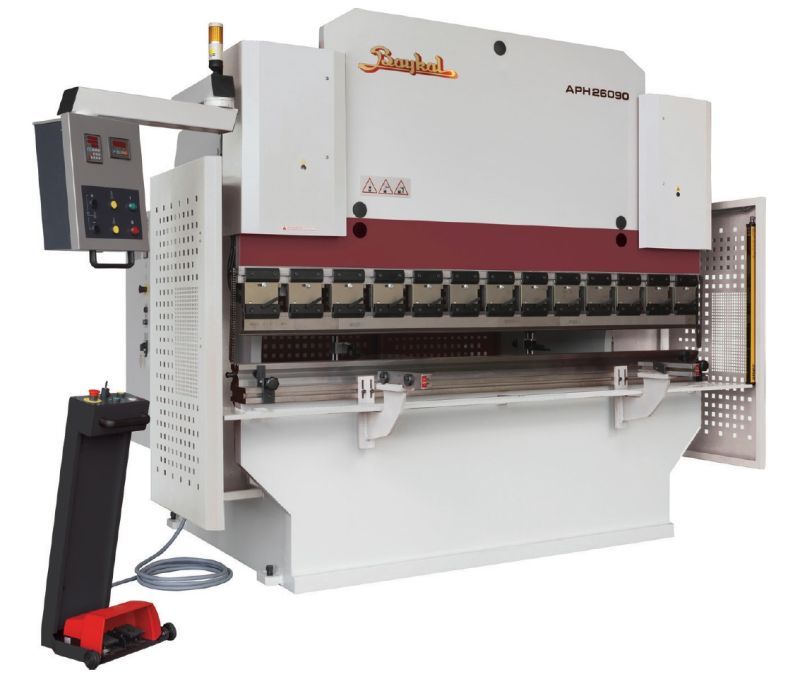

Hydraulic Press Brake NC Controlled
NC Controlled / Bending Length: 3100 mm / Bending Thickness: 16 mm / Tonnage: 300 Tons
Subcategory
Sheet Metal Processing Machines
Technical Specifications
| Technical Information | A Bending Length: 3100 mm |
|---|---|
| B Between Feet | 2550mm |
| C Foot Width | 1815mm |
| G Lower Jaw Height | 900mm |
| H Height of Machine | 3090mm |
| K Jaw Opening | 595mm |
| Lp Fixed Stroke | 180mm |
| La Adjustable Stroke | 120mm |
| M Table Width | 380mm |
| N Throat Depth | 500mm |
| Oil tank volume | 280 liters |
| Speeds - Descent | 80mm/s |
| - Basma | 9mm/s |
| - Takeoff | 60mm/s |
| Approximate weight | 16,000kg |
| Print Tonnage | 300 tons |
| Engine Power | 22 kW |
