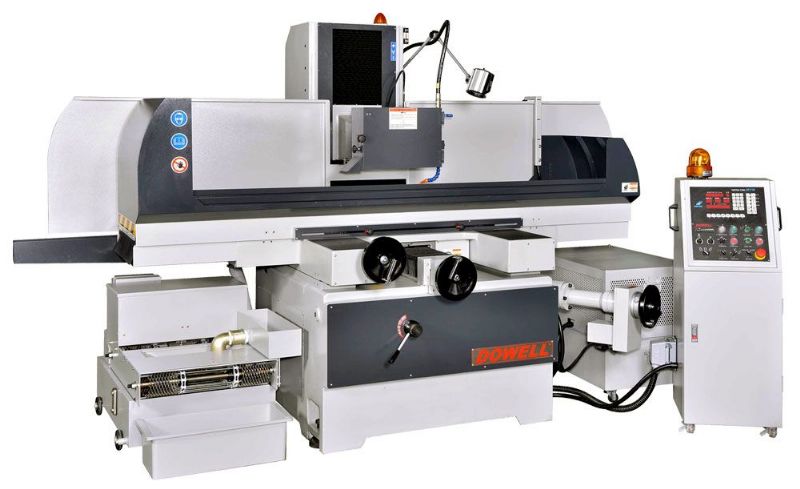

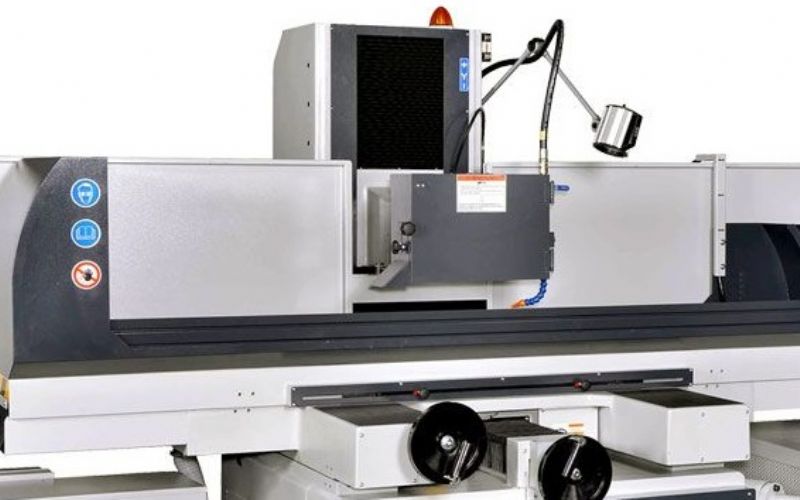

P400x800 mm Programmable Fully Automatic Surface Grinding Machine
Fully Automatic Surface Grinding / 400x800 mm / 1450-2000 rpm. / Programmable Automatic Diving Feature and Y Axis
Subcategory
Cutting and Machining Machines
Technical Specifications
| MODEL | DSG-1632 CAHD / 400 x 800 MM / FULL AUTOMATIC |
|---|---|
| Sherry | 1100mm/min |
| Handwheel | 0.02~5mm |
| Sherry | 230mm/min |
| Handwheel | 0.005~1mm |
| Speed (With Inverter) | 2,000 rpm |
| Size | 406 x 50 x 127mm |
| DIMENSIONS ( L x W x H ) | 260 x 210 x 210cm |
| STANDARD EQUIPMENT Closely Striped & Strong Electro Magnetic Table Magnet Retrieval System Grinding Stone Stone Flange Stone Sharpening System Automatic Lubrication System Cooling Unit Balancing Stand Lighting System | FEATURES Programmable Diving Feature Fully Automatic Working System Automatic Shutdown or Audible Warning at the End of Work Ball Spindle on Y and Z Axis P4 Class Spindle with Super Precision Bearing German Siemens on Spindle |
