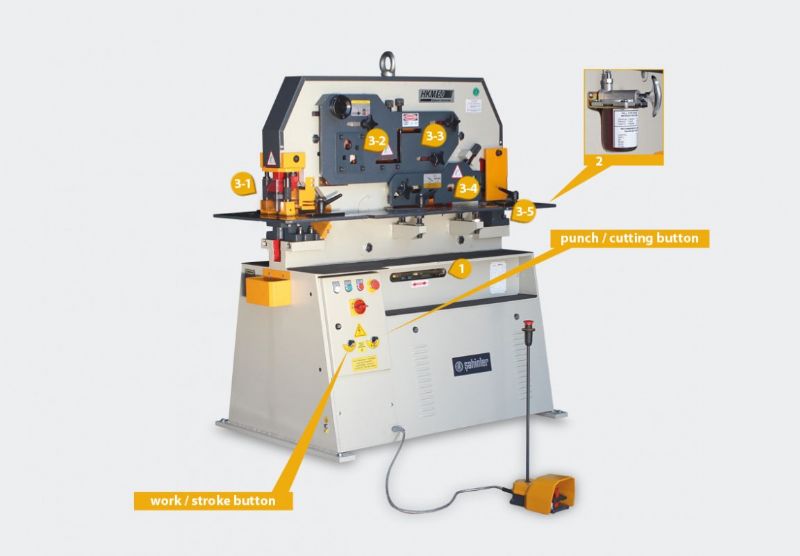

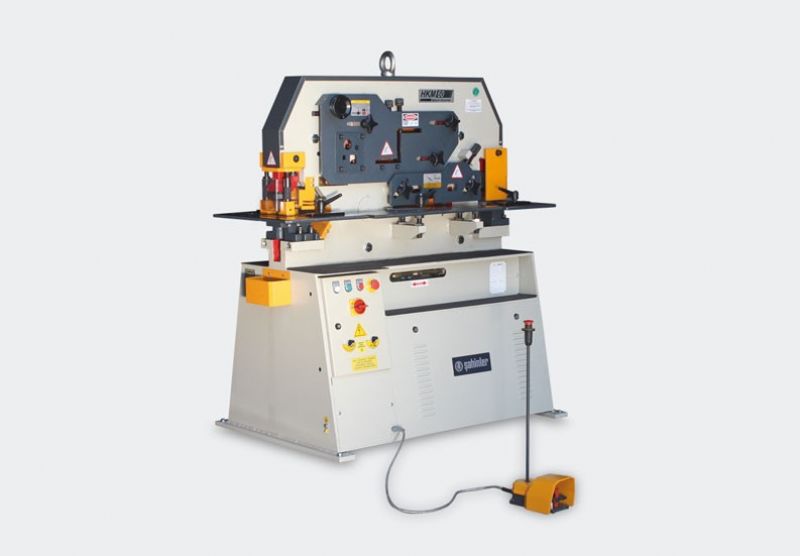

Single Piston Hydraulic Combination Scissors
Subcategory
Sheet Metal Processing Machines
Technical Specifications
| Standard equipment | HOLE PUNCH |
|---|---|
| Diameter Ø at maximum thickness | Ø 22 x 15 mm |
| Diameter x thickness (xt) | Ø 38 x 8 mm |
| Thickness at maximum diameter | Ø 100 x 3 mm |
| business course | 50mm |
| Number of courses | x 20 |
| groove depth | 175mm |
| Working height | 935mm |
| Standard equipment | FULL MATERIAL SCISSORS |
| Round / square | Ø 30- 25 mm |
| Standard equipment | CORNER BAR CUTTING SCISSORS |
| Vertical angle (90°) | 100x100x10mm |
| Angled angle (45°) | 70x6mm |
| Working height | 1140mm |
| Standard equipment | SHEET SCISSORS (LAM CUTTING) |
| flat sheet | 200x15mm |
| flat sheet | 300 x 12mm |
| blade length | 316mm |
| Angled cut | 80x10mm |
| Working height | 935mm |
| Standard equipment | NOTCHING |
| Material thickness | 8mm |
| Width | 35mm |
| Depth | 75mm |
| Working height | 935mm |

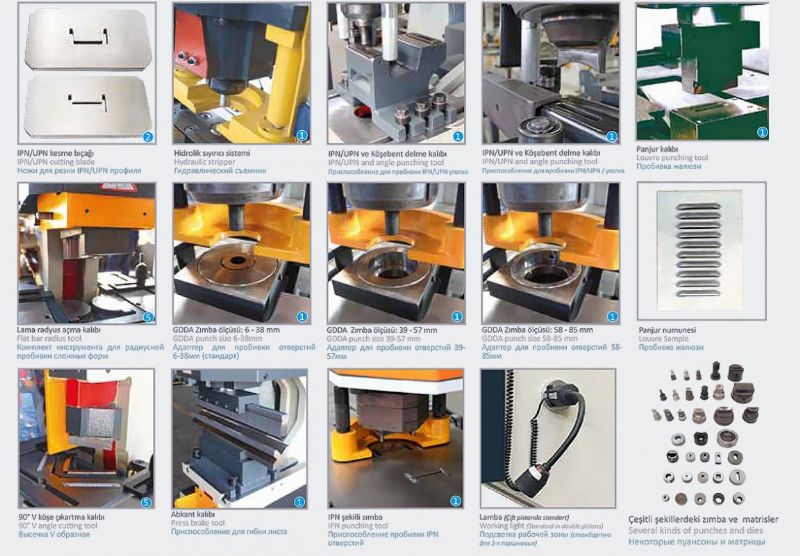

| Optional equipment | SPECIAL MOLDS |
| U-I profile blades (UPN - IPN cutting | 80x45mm |
| T profile blades | 40x5mm |
| Optional equipment | Special notch set |
| Optional equipment | V curl Lama curl maximum |
| Optional equipment | Punch in the notch part Jaw depth |
| Punch in the notch section Sheet bending maximum | Ø 18 x 12 mm |
| engine power | 4 kW 1165 kg 1430x950x1680 mm 45 tons |
