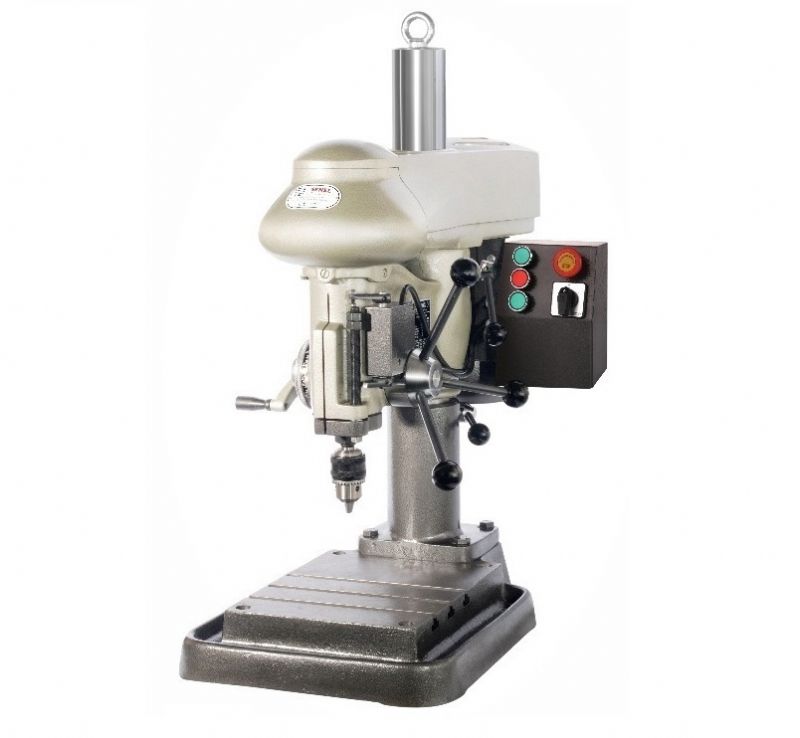

Single Speed Desktop Tapping Drilling Machine
Tapping Capacity: M-12 / 5 Speed Stages / Desktop Usage Type / Lamp and Spare Spring
Subcategory
Cutting and Machining Machines
Technical Specifications
| MODEL | M16-K1 / SINGLE SPEED ENGINE / Speed: 280-2800 rpm. or 450-4500 rpm. |
|---|---|
| Drilling Capacity | 16mm/B-16 |
| Max. Drilling Diameter (mm) | 16 |
| Max. Guide Diameter | M12 |
| Engine Power (kw) | 0.55 |
| Engine Output Speed (rpm) | 900 |
| Spindle Speed-Low Type (rpm) | 280-2800 |
| Spindle Speed-High Type (rpm) | 450-4500 |
| Spindle Speed Range | 5 |
| Dimensions (WxLxH)(mm): | 480x700x730 |
| Weight (kg) | 97 |
| Max-min distance between spindle tip and table (mm) | 400-145 |
| Spindle stroke (mm) | 100 |
| spindle taper | 2MK-B16 |
